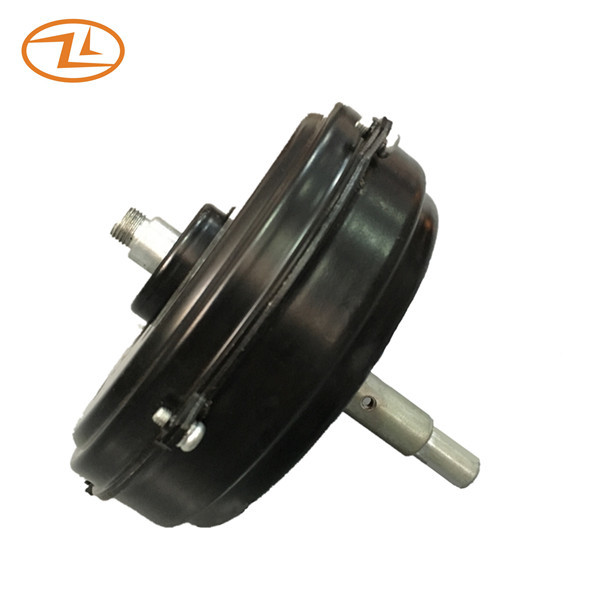

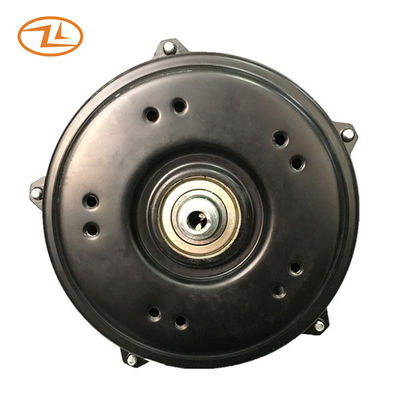

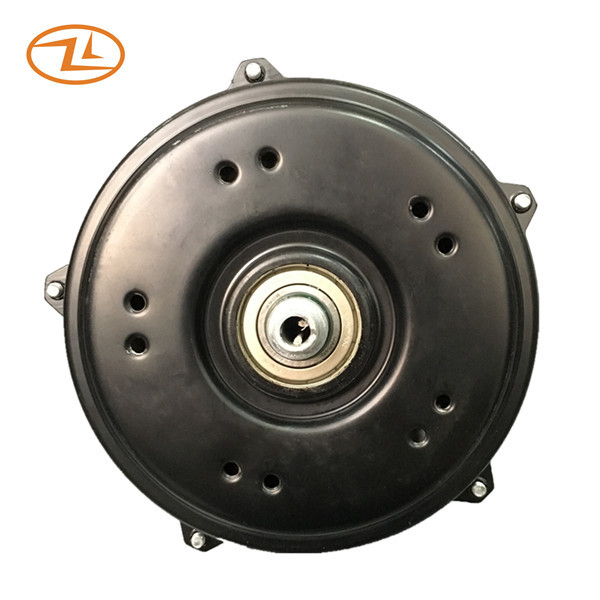

BLDC Ceiling Fan Motor For 72inch Ceiling Fan 120VAC 40W Low Noise Low Speed
This motor is also called EC motor. No transformer need. The motor controller functions as "AC to DC" and supply DC power to motor.
| Model |
Output signal |
Control type PWM/ voltage |
Bearing type Ball/sleeve bearing |
Rated voltage VDC |
Operating voltage VDC |
Rated current A |
Rated input power W |
Speed RPM |
Load Ceiling fan |
Life hours |
| D9T92H4B- | / | PWM | Ball bearing | 24 | 16~26.4 | 0.8 | 19.2 | 230 | 42inch 3 blades | 30,000 |
| E9T92HBB- | / | PWM | Ball bearing | 240 | 160~270 | 0.2 | 30 | 200 | 48inch 3 blades | 30,000 |
| EBTD0MBB01 | -FG | PWM | Ball bearing | 240 | 160~270 | 0.23 | 30 | 200 | 52inch 3 blades | 30,000 |
| EBTD0LAB01 | -FG | PWM | Ball bearing | 120 | 90~150 | 0.35 | 35 | 170 | 56inch 3 blades | 30,000 |
| Model |
Output signal |
Control type PWM/ voltage |
Bearing type Ball/sleeve bearing |
Rated voltage VDC |
Operating voltage VDC |
Rated input power W |
Speed RPM |
Load Ceiling fan |
Life hours |
| EBTF0MBB01 | -FG | PWM | Ball bearing | 240 | 100~240 | 60~100 | 100~120 | 90inch~120inch blades | 30,000 |
| EBTF0LAB01 | -FG | PWM | Ball bearing | 240 | 160~270 | 35 | 100 | 68inch 3 blades | 30,000 |
| EBTF0LAB02 | -FG | PWM | Ball bearing | 120 | 90~150 | 40 | 120 | 72inch 3 blades | 30,000 |
| EBTF0LBB03 | -FG | PWM | Ball bearing | 240 | 160~270 | 300 | 120 | 2.8M 4 blades | 30,000 |
Drawing:
Application: Industrial Ceiling fan
