40W Ceiling Fan Outer Rotor BLDC Motor Three Phase 42 Inch Fan Motor With Emitter

40W Ceiling Fan Outer Rotor BLDC Motor Three Phase 42 Inch Fan Motor With Emitter
Features Gallery Product Description Request A Quote
Name: BLDC Ceiling Fan Motor
Rated Voltage: 240VAC
Stack Size: φ155mm
Number Of Poles: Eight Poles
Number Of Phases: Three Phase
Construction: Outer Rotor
Bearing: Ball Bearings
Control Type: PWM
Output Signal: FG
Rectifying Method: Electronices
Packing: Customized Packing
Printing: Customized Printing
Anicilary: Emitter And Signal Receiver
Application: DC Ceiling Fan
High Light:

Ceiling Fan Outer Rotor BLDC Motor


Three Phase Outer Rotor BLDC Motor


40W 42 Inch Fan Motor

Basic Infomation
Place of Origin: China
Brand Name: Zhaoli
Certification: CE, ROHS, REACH
Model Number: E9TD2HBBEV
Payment & Shipping Terms
Packaging Details: cartons + pallets
Delivery Time: 25-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1,000pcs per day
Product Description

42inch 48inch Ceiling Fan Motor BLDC Motor With Controller And Emitter As One Set

This motor is also called EC motor. No transformer need. The motor controller functions as "AC to DC" and supply DC power to motor.

  • Motor characteristics
Rated voltage 240VAC 50/60HZ
Rated speed(free load) 260+/-5RPM
Rated current(free load) 0.1A max
Rated speed(on load) 330+/-10 RPM
Rated power(on load) 40W max
Working duty S1
Insulation resistance 10MΩmin. (500VDC)
Dielectric strength 1500VAC/1min leakage current <=5mA

Speed step:

Step 1 2 3 4 5
Speed RPM 100 135 190 220 335
Current A 0.059 0.062 0.069 0.072 0.102
Power W 3.9 4.6 5.6 6.4 10.9
  • Motor controller (signal receiver)
  • Color black
    Power Motor 40W max; light 40W max
    Character Vector sine wave control
    • Through RF(433MHZ) to receive the transmitter signal and control accordingly.
    • Motor on and off; Motor on load speed; Motor Running time; Motor rotation direction
    Protection Function
    • Soft start: When the controller is powered on, the motor will speed up slowly to the required data.
    • Over-voltage and under-voltage protection: When the power input to the controller voltage is higher than 270VAC, or less than 70VAC, the controller will turn off the current.
    • Over-current protection: Due to external causes, if the motor current increases which exceeds set value, the controller will turn off the motor.
    • Over-heating protection: When the temperature is higher than 85℃, the motor is turned off or slow down the speed.
    • Open-phase protection: If there is no power supply to one of the phases, the motor will be stopped running by the controller.

    • Constant power protection:The maximum load power of the motor is not affected by the voltage value in the operating voltage range.When the load of the motor changes, the power of the motor remains unchanged.
  • Emitter
Color Black
Type RF
Speed steps 5 steps

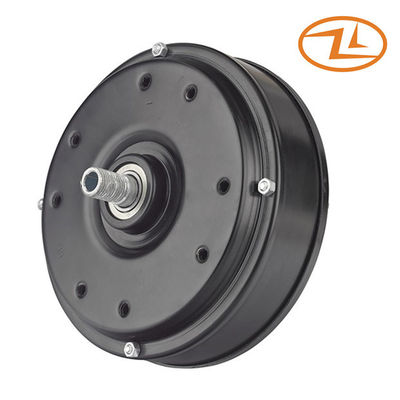

40W Ceiling Fan Outer Rotor BLDC Motor Three Phase 42 Inch Fan Motor With Emitter 0


Application: Ceiling fan

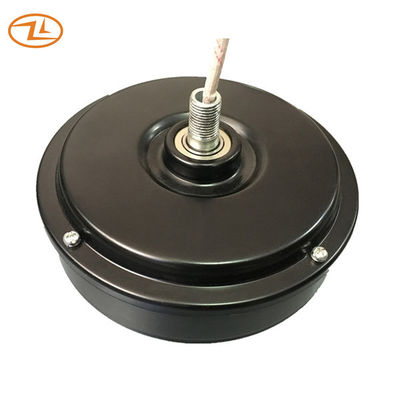

40W Ceiling Fan Outer Rotor BLDC Motor Three Phase 42 Inch Fan Motor With Emitter 1
