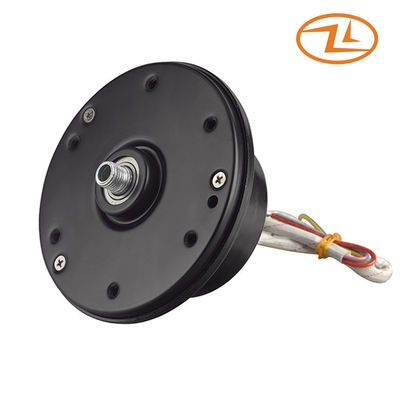

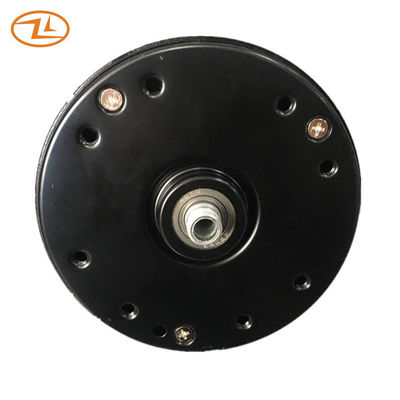

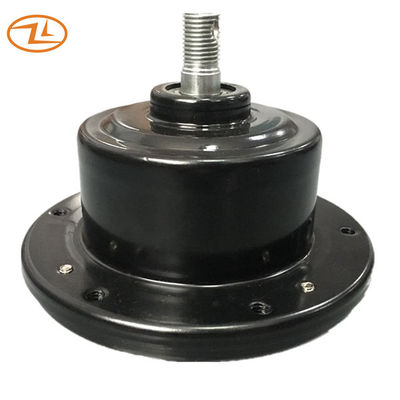

120V 40W Ceiling Fan Motors / Brushless DC Motor FG Signal With Remote Controller

1000
MOQ
120V 40W Ceiling Fan Motors / Brushless DC Motor FG Signal With Remote Controller
Features Gallery Product Description Request A Quote
Features
Specifications
Name: BLDC Ceiling Fan Motor
Rated Voltage: 108~132VAC
Stack Size: φ92mm
Number Of Poles: Nine Poles
Number Of Phases: Three Phase
Bearing: Ball Bearings
Construction: Outer Rotor
Control Type: PWM
Output Signal: FG
Rectifying Method: Electronices
Packing: Customized Packing
Printing: Customized Printing
Anicilary: Emitter And Signal Receiver
Application: DC Ceiling Fan
High Light:

40W Ceiling Fan Motors

,

FG Signal Ceiling Fan Motors

,

FG Signal Brushless DC Motor
Basic Infomation
Place of Origin: China
Brand Name: Zhaoli
Certification: CE, ROHS, REACH
Model Number: E9T72HAB86
Payment & Shipping Terms
Packaging Details: cartons + pallets
Delivery Time: 25-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1,000pcs per day
Product Description

BLDC Ceiling Fan Motor Brushless DC Motor 120V 60HZ Input With Remote Controller



  • Motor characteristics
Rated voltage 108~132VAC
Operating voltage 100~140VAC
Rated speed(on load) 400+/-10 RPM
Rated power(on load) 40W max
Working duty S1
Insulation resistance 10MΩmin. (500VDC)
Dielectric strength 1500VAC/1min leakage current <=5mA
Speed control PWM
Detecting method of motor speed FG signal
  • Motor controller (signal receiver)
Color black
Power Motor 40W max
Character Vector sine wave control
Function
  • Through RF(433MHZ) to receive the transmitter signal and control accordingly.
  • Motor on and off; Motor on load speed; Motor Running time; Motor rotation direction
Protection Function
  • Soft start: When the controller is powered on, the motor will speed up slowly to the required data.
  • Over-voltage and under-voltage protection: When the power input to the controller voltage is higher than 160VAC, or less than 50VAC, the controller will turn off the current.
  • Over-heating protection: When the temperature is higher than 85℃, the motor is turned off or slow down the speed.
  • Lock protection: When the motor suddenly stops due to the external resistance, the controller will turn off the motor current, and try to restart after a few seconds. If there is no resistance, the motor runs normally; if resistance do not disappear, motor will stop running temporarily and after a few cycles, the power would be cut off completely by the controller.
  • Over-current protection: Due to external causes, if the motor current increases which exceeds set value, the controller will turn off the motor.
  • Constant power protection:The maximum load power of the motor is not affected by the voltage value in the operating voltage range.When the load of the motor changes, the power of the motor remains unchanged.



Drawing:

120V 40W Ceiling Fan Motors / Brushless DC Motor FG Signal With Remote Controller 0



Application: Ceiling fan

120V 40W Ceiling Fan Motors / Brushless DC Motor FG Signal With Remote Controller 1



Tag:

PWM Control Ceiling Fan Motors

40W Ceiling Fan Motors

132V High Voltage BLDC Motor
