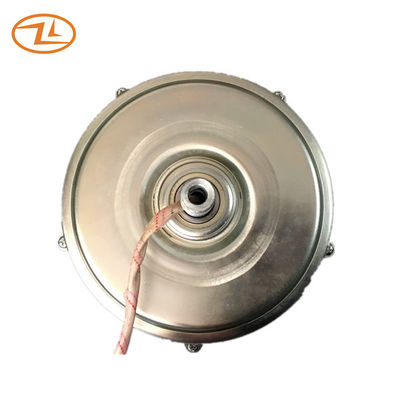

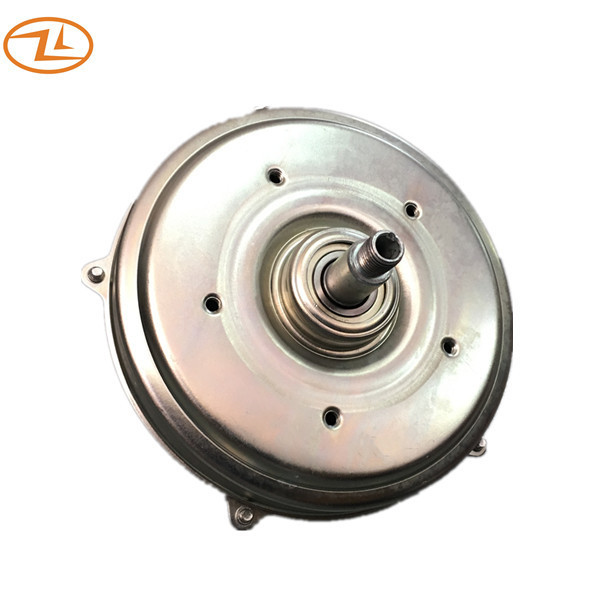

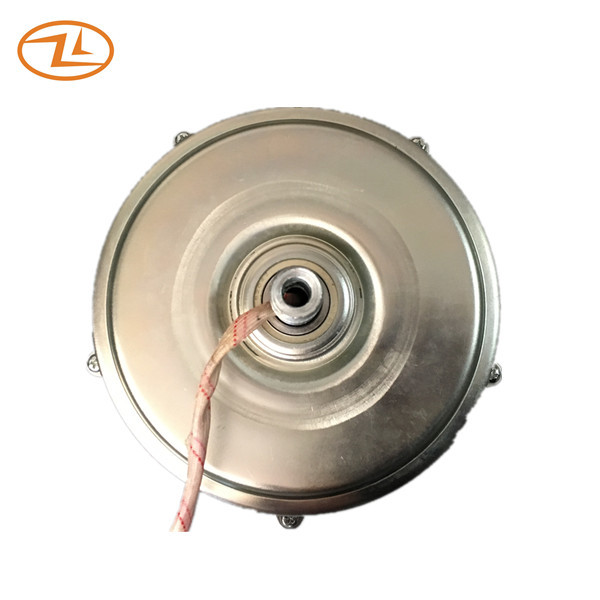

120 Inch Ceiling Fan BLDC Motor For Industrial Ceiling Fan 240VAC 130RPM
This motor is also called EC motor. No transformer need. The motor controller functions as "AC to DC" and supply DC power to motor.
| Rated voltage | 240VAC 50/60HZ |
| Operating voltage | 160~270VAC 50/60HZ |
| Operating condition | -10℃~50℃, RH 5%~90% |
| Storage condition | -20℃~60℃, RH 5%~95% |
| Rated voltage | 240VAC 50/60HZ |
| Rated speed(on load) 56inch fan | 130+/-10 RPM |
| Rated power(on load) | 400W max |
| Working duty | S1 |
| Insulation resistance | 10MΩmin. (500VDC) |
| Dielectric strength | 1500VAC/1min leakage current <=5mA |
| Speed control | PWM |
| Detecting method of motor speed | FG signal |
Motor controller (signal receiver)
| Color | black |
| Power | Motor 40W max |
| Character | Vector sine wave control |
| Function |
- Through RF(433MHZ) to receive the transmitter signal and control accordingly. - Motor on and off; Motor on load speed; Motor Running time; Motor rotation direction |
| Protection Function |
- Soft start - Over-voltage and under-voltage protection - Over-heating protection - Lock protection - Over-current protection - Constant power protection - Open-phase protection |
Emitter
| Color | Black or white |
| Type | RF |
| Speed steps | 5 steps |
Drawing:
Application: Industrial Ceiling fan
