72 Inch BLDC Industrial Ceiling Fan Motors 340V With Controller

72 Inch BLDC Industrial Ceiling Fan Motors 340V With Controller
Features Gallery Product Description Request A Quote
Name: BLDC Ceiling Fan Motor
Rated Voltage: 340VDC
Stack Size: φ168mm
Number Of Poles: Eight Poles
Number Of Phases: Three Phase
Bearing: Ball Bearings
Construction: Outer Rotor
Control Type: PWM
Output Signal: FG
Rectifying Method: Electronices
Packing: Customized Packing
Printing: Customized Printing
Anicilary: Emitter And Signal Receiver
Application: BLDC Ceiling Fan
High Light:

72 Inch Ceiling Fan Motors


340V Ceiling Fan Motors


BLDC Industrial Fan Motors

Basic Infomation
Place of Origin: China
Brand Name: Zhaoli
Certification: CE, ROHS, REACH
Model Number: 168
Payment & Shipping Terms
Packaging Details: cartons + pallets
Delivery Time: 25-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1,000pcs per day
Product Description

BLDC Motor Industrial Ceiling Fan Motor For 72inch Fan 340VDC Supply With Controller


Brushless Direct Current Motor is a type of energy-saved motor.

  • Motor characteristics
Rated voltage 340VDC
Operating voltage 155~340VDC
Rated speed(on load) 75+/-5 RPM (high step)
Rated power(on load) 84W
Working duty S1
Insulation resistance 10MΩmin. (500VDC)
Dielectric strength 1500VAC/1min leakage current <=5mA
Speed control PWM
Detecting method of motor speed FG signal


  • Motor controller (signal receiver)
Rated voltage 120V 60HZ or 240V 50HZ
Power Motor 90W max
Character Vector sine wave control

- Through RF(433MHZ) to receive the transmitter signal and control accordingly.

- Motor on and off; Motor on load speed; Motor Running time; Motor rotation direction

Protection Function

- Soft start: When the controller is powered on, the motor will speed up slowly to the required data.

- Over-voltage and under-voltage protection: When the power input to the controller voltage is higher than 270VAC, or less than 70VAC, the controller will turn off the current.

- Over-heating protection: When the temperature is higher than 85℃, the motor is turned off or slow down the speed.

- Lock protection: When the motor suddenly stops due to the external resistance, the controller will turn off the motor current, and try to restart after a few seconds. If there is no resistance, the motor runs normally; if resistance do not disappear, motor will stop running temporarily and after a few cycles, the power would be cut off completely by the controller.

- Over-current protection: Due to external causes, if the motor current increases which exceeds set value, the controller will turn off the motor.

- Open-phase protection: If there is no power supply to one of the phases, the motor will be stopped running by the controller.

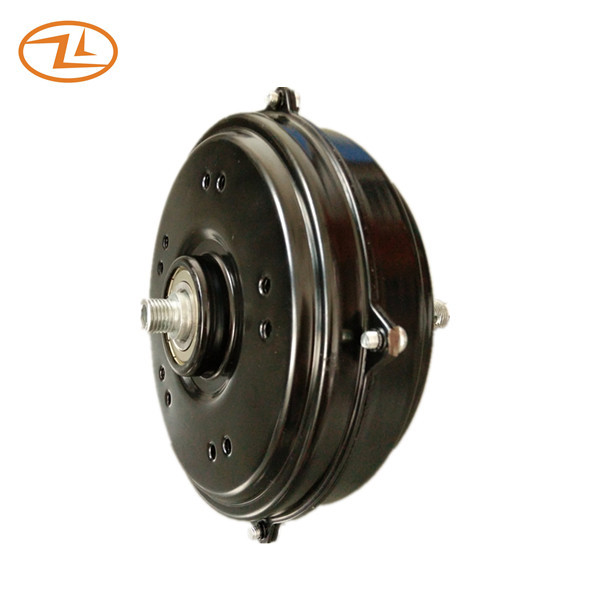

72 Inch BLDC Industrial Ceiling Fan Motors 340V With Controller 0


Application: Industrial Ceiling fan

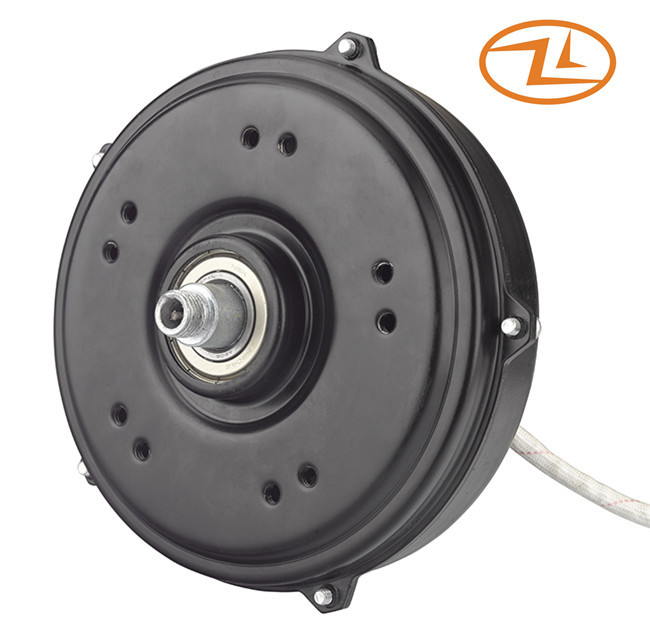

72 Inch BLDC Industrial Ceiling Fan Motors 340V With Controller 1
