340V Industrial Brushless DC Fan Motor 84W Outer rotor Three Phase

340V Industrial Brushless DC Fan Motor 84W Outer rotor Three Phase
Features Gallery Product Description Request A Quote
Name: BLDC Ceiling Fan Motor
Rated Voltage: 340VDC
Stack Size: φ168mm
Number Of Poles: Eight Poles
Number Of Phases: Three Phase
Bearing: Ball Bearings
Construction: Outer Rotor
Control Type: PWM
Output Signal: FG
Rectifying Method: Electronices
Packing: Customized Packing
Printing: Customized Printing
Anicilary: Emitter And Signal Receiver
Application: Industrial Ceiling Fan
High Light:

340V Brushless DC Fan Motor


Outer Rotor Brushless DC Fan Motor


84W Three Phase DC Motor

Basic Infomation
Place of Origin: China
Brand Name: Zhaoli
Certification: CE, ROHS, REACH
Model Number: 168
Payment & Shipping Terms
Packaging Details: cartons + pallets
Delivery Time: 25-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1,000pcs per day
Product Description

Brushless DC Motor For Industrial Ceiling Fan 340VDC Or 120VAC Or 240VAC

  • Operating condition
Rated voltage 340VDC
Operating voltage 155~340VDC
Operating condition 0℃~40℃, RH 5%~90%
Storage condition -20℃~60℃, RH 5%~95%


  • Motor characteristics
Rated voltage 340VDC
Operating voltage 155~340VDC
Rated speed(on load) 75+/-5 RPM (high step)
Rated power(on load) 84W
Working duty S1
Insulation resistance 10MΩmin. (500VDC)
Dielectric strength 1500VAC/1min leakage current <=5mA
Speed control PWM
Detecting method of motor speed FG signal
  • Motor controller (signal receiver)
Rated voltage 120V 60HZ or 240V 50HZ
Power Motor 90W max
Character Vector sine wave control

- Through RF(433MHZ) to receive the transmitter signal and control accordingly.

- Motor on and off; Motor on load speed; Motor Running time; Motor rotation direction

Protection Function

- Soft start

- Over-voltage and under-voltage protection: When the power input to the controller voltage is higher than 270VAC, or less than 70VAC, the controller will turn off the current.

- Over-heating protection

- Lock protection: When the motor suddenly stops due to the external resistance, the controller will turn off the motor current, and try to restart after a few seconds. If there is no resistance, the motor runs normally; if resistance do not disappear, motor will stop running temporarily and after a few cycles, the power would be cut off completely by the controller.

- Over-current protection

- Constant power protection:The maximum load power of the motor is not affected by the voltage value in the operating voltage range.When the load of the motor changes, the power of the motor remains unchanged.

- Open-phase protection: If there is no power supply to one of the phases, the motor will be stopped running by the controller.

  • Emitter
Color Black or white
Type RF 433MHZ

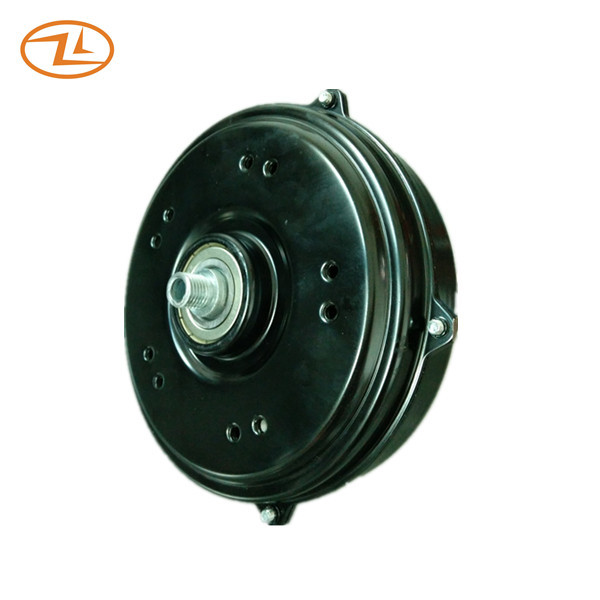

340V Industrial Brushless DC Fan Motor 84W Outer rotor Three Phase 0


Application: Industrial Ceiling fan

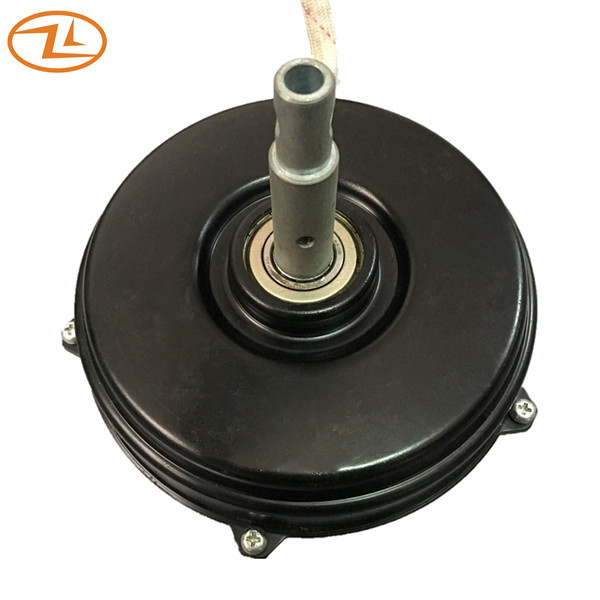

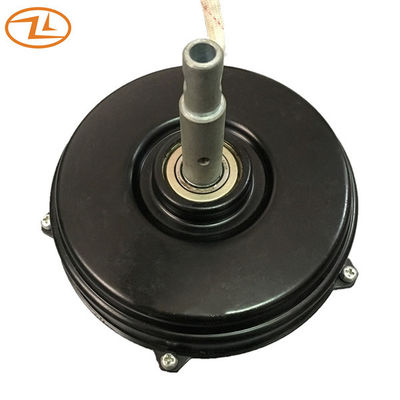

340V Industrial Brushless DC Fan Motor 84W Outer rotor Three Phase 1
