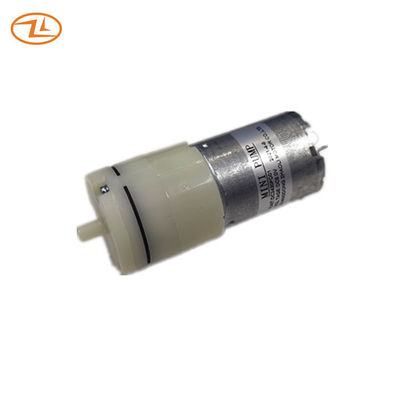

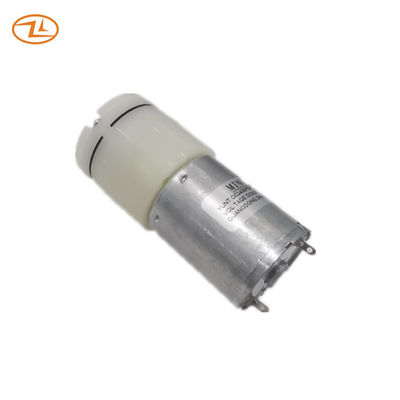

Blood Pressure DC Air Pump Motor 6.0V 300mmHg For Portable Nebulizer

2000
MOQ
Blood Pressure DC Air Pump Motor 6.0V 300mmHg For Portable Nebulizer
Features Gallery Product Description Request A Quote
Features
Specifications
Name: DC Air Pump
Rated Voltage: 6.0VDC
Bearing: Sleeve Bearing
Packing: Customized Packing
Printing: Customized Printing
Application: Portable Nebulizer/ Blood Pressure
High Light:

Portable Nebulizer DC Air Pump Motor

,

300mmHg DC Air Pump Motor

,

6.0V Blood Pressure Pump Motor

Basic Infomation
Place of Origin: China
Brand Name: Zhaoli
Certification: CE, ROHS, REACH
Model Number: DC2430PD01
Payment & Shipping Terms
Packaging Details: cartons + pallets
Delivery Time: 25-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000pcs per day
Product Description

DC Air Pump Diaphragm Pump For Portable Nebulizer Blood Pressure 6.0VDC



Pump type: diaphragm pump



Application: This model is mainly applied in blood pressure or any other atomizer use.



Specification:

Rated voltage 6.0VDC
Operating voltage 4.0 - 7.2 VDC
Rated current The highest current is less than 380mA while pressurizing with DC6.0V from 0 to 300mmHg.
Inflation time It takes Less than 10 seconds to pressurize with DC6.0V from 0 to 300 mmHg in a 500cc tank.
Leakage Pressurizing from 0 till 300±30mmHg in a 500CC tank, then holding for 30 seconds. After that, measuring the dropped pressure value, which shall be less than 2.0mmHg/min.
Max pressure The maximum pressure value shall be more than 400 mmHg while pressurizing with DC 6.0 V in a 500CC tank from 0 till dead-head pressure value.
Restart voltage Fill pressure until 200mmHg pause,and then add DC 3.0V voltage pump should restart.
Dielectric strength 600VAC/1S leakage current <=5mA
Temperature rise <60K



Drawing:

Blood Pressure DC Air Pump Motor 6.0V 300mmHg For Portable Nebulizer 0Blood Pressure DC Air Pump Motor 6.0V 300mmHg For Portable Nebulizer 1
