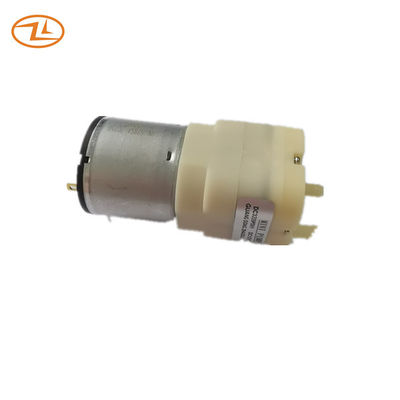

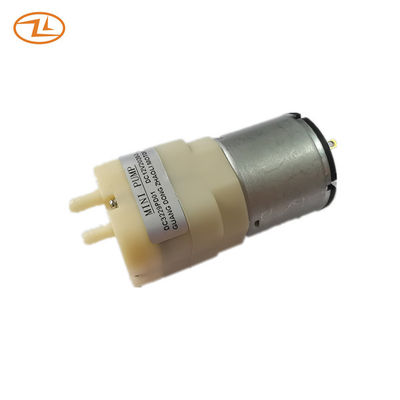

DC Nebulizer Use DC Air Pump Motor Diaphragm Pump 12VDC Low Noise Long Life
Diaphragm Pump Specification:
| Model | DC3229PD02 |
| Rated Voltage VDC | 12V |
| Operating Voltage VDC | 10-14.4V |
| Max current A | 450mA |
| Max air flow L/M | >=5.0L/M |
| Max air pressure PSI | >=20PSI |
| Inflation time | It takes Less than 10 seconds to pressurize with DC12.0V from 0 to 200 mmHg in a 100cc tank. |
| Unusual test | There is no burning and smoking occurrence while the power is on with DC 14.4V for 1 hours continuously. |
| Life test | > 400 hours |
Drawing:
Application: Portable nebulizer, Inhaler, Atomizer
