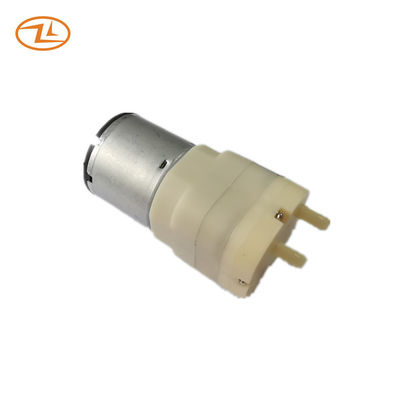

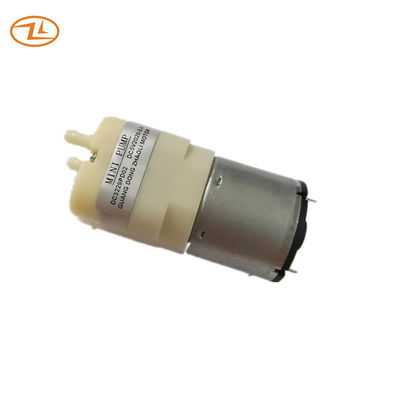

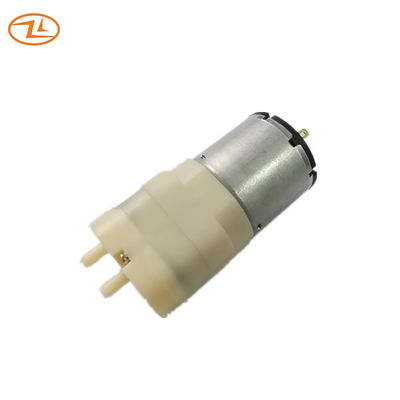

Diaphragm Air Pump Portable Nebulizer Use 5.0VDC Ball Bearing Long Life Low Noise
Diaphragm Pump Specification:
| Model | DC3229PD02 |
| Rated Voltage VDC | 5.0V |
| Operating Voltage VDC | 4-6.2V |
| Max current A | 1100mA |
| Max air flow L/M | >=5.0L/M |
| Max air pressure PSI | >=20PSI |
Dielectric strength: 600VAC/1S leakage current <=5mA
Restart voltage: Fill pressure until 200mmHg pause,and then add DC 3.0V voltage pump should restart.
Drawing:
Application: Portable nebulizer, Inhaler, Atomizer
