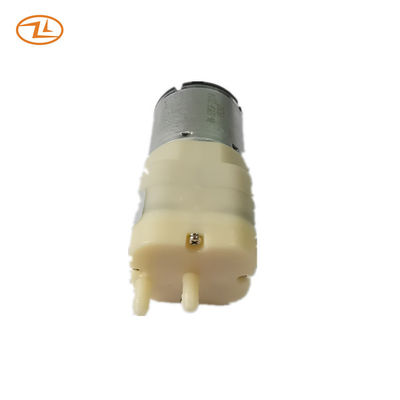

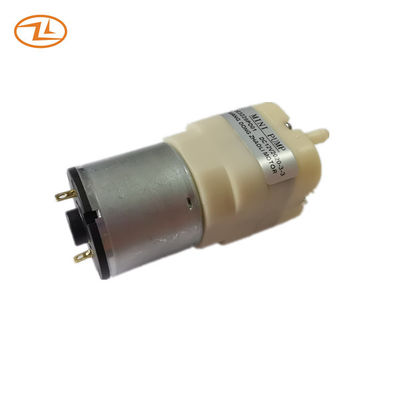

Diaphragm Pump DC Air Pump For 12VDC Portable Inhaler Blood Pressure Zhaoli Motor
A diaphragm pump is a pump in which a diaphragm is used to move a fluid.
Diaphragm Pump Specification:
| Model | DC3229PD02 |
| Rated Voltage VDC | 12V |
| Operating Voltage VDC | 10-14.4V |
| Max current A | 450mA |
| Max air flow L/M | >=5.0L/M |
| Max air pressure PSI | >=20PSI |
| Inflation time | It takes Less than 10 seconds to pressurize with DC12.0V from 0 to 200 mmHg in a 100cc tank. |
| Noise |
Putting a 5 cm sponge under the pump,and placing it about 30 cm away from the noise meter,The evaluated noise level shall be less then 62dB while pressurizing with DC 12.0V from 0 to 200mmHg |
Drawing:
Application: Portable nebulizer, Inhaler, Atomizer
