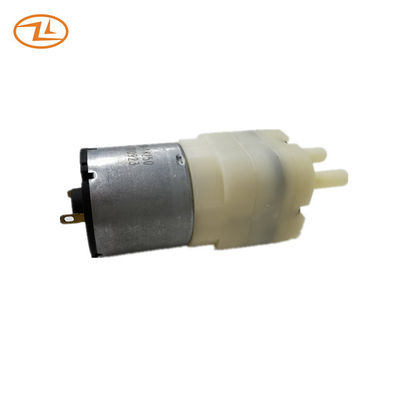

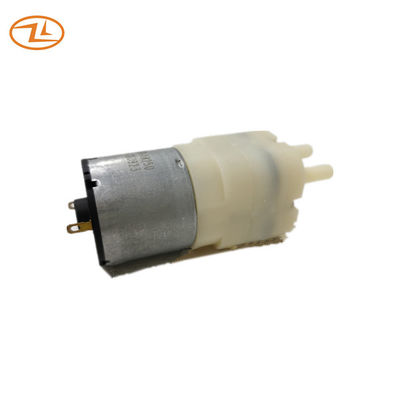

DC Air Pump Motor Mini Air Pump Atomizer Use 12DV Or 6VDC Max Pressure 20PSI
| Rated voltage | 12.0VDC |
| Operating condition | -10℃~45℃, RH 30%~80% |
| Storage condition | -20℃~60℃, RH 30%~80% |
| Operating voltage | 10.0 - 14.4 VDC |
| Rated current | ≤450mA (DC12.0V at 0mmHg) |
| Flow rate at no load | ≥5.0L/min |
| Max pressure | ≥20psi |
| Noise | Putting a 5 cm sponge under the pump motor, and use noise meter with 30 cm away from the pump motor,the averaged noise shall be less then 62dB , with DC 12.0V from 0 to 20psi. |
| The lead tension | Hanging a 0.5 Kg static load on the terminal , no damage. |
| Fall test | Basic performance and the structure shall not be defected after drop test: with a standard packaging, then drop it at the front,side,and edges part from the height of 50 cm to the concrete floor. |
Drawing:
Application: Portable nebulizer, Inhaler, Atomizer
