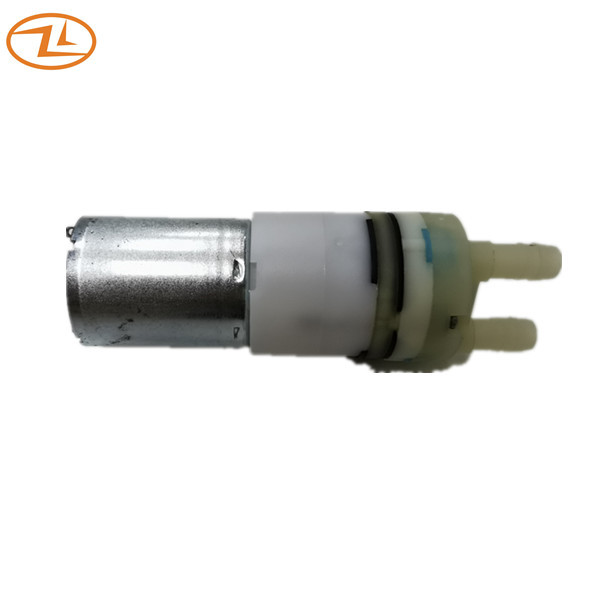

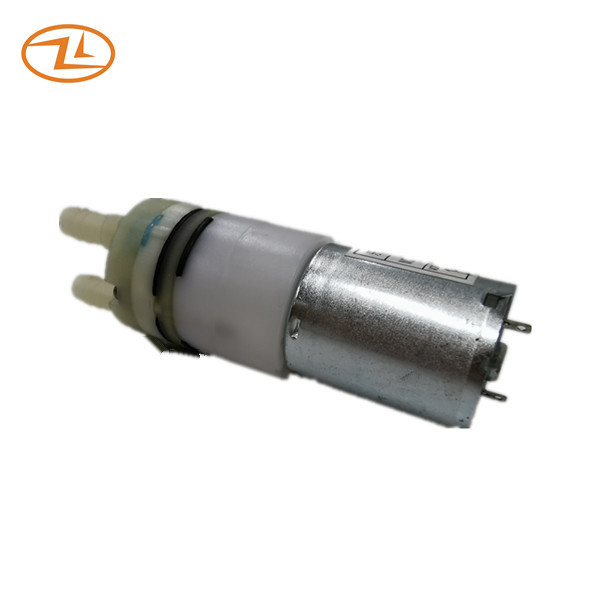

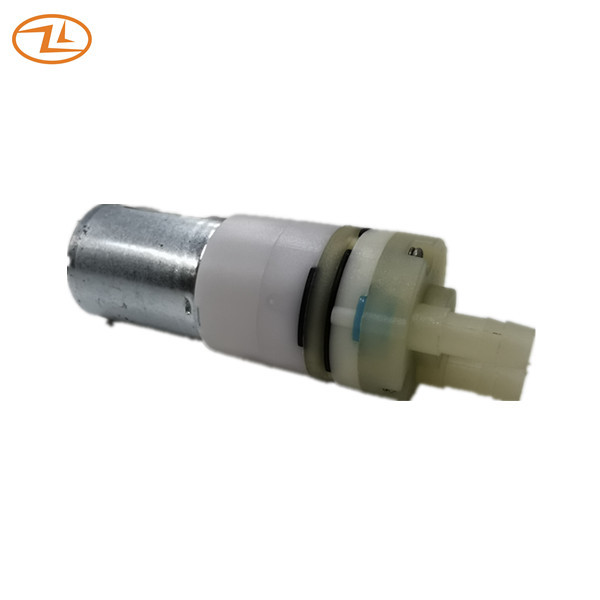

Mini 12v Dc Diaphragm Water Pump For Waterpik Automatic Teapot Tooth Cleaner

2000
MOQ
Mini 12v Dc Diaphragm Water Pump For Waterpik Automatic Teapot Tooth Cleaner
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Diaphragm Pump
Rated Voltage: 12VDC
Pump Type: Diaphragm Air Pump
Packing: Customized Packing
Printing: Customized Printing
Application: Portable Nebulizer/ Blood Pressure
High Light:

12v dc diaphragm water pump

,

tooth cleaner dc diaphragm water pump

,

mini 12v diaphragm pump

Basic Infomation
Place of Origin: China
Brand Name: Zhaoli
Certification: CE, ROHS, REACH
Model Number: DC2430PE03
Payment & Shipping Terms
Packaging Details: cartons + pallets
Delivery Time: 25-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000pcs per day
Product Description

DC Water Mini Pump Air Pump For Waterpik Automatic Teapot Tooth Cleaner​





Specification:

  • Operating condition
Test Environment Ambient temperature of 20℃ and relative humidity of 65%RH.
Position Horizontal
Load Air pressure 300mmHg
Operating condition 5℃~45℃, RH 30%~85%
Storage condition -20℃~60℃, RH 30%~85%



  • Function
Rated voltage 12.0VDC
Operating voltage 9.6 - 14.4 VDC
Air flow(free load) At DC12.0V, the air flow is ≥0.8L/min with no load.
Water flow(free load) At DC12V, the water flow is ≥ 1200mL/min with no load.
Rated current The highest current is less than 400mA while the pump for drawing water.
Restart voltage Operating voltage range gas filled pressure untills -30KPa(30 KPa) pineland then add DC9.6V voltage pump should restart.
Noise The sponge of 5 cm underlying is 30 cm away from the noise meter. The dB value measured by DC 12V power supply pumping is less than 55 dB.
Terminal tension Hanging a 0.5 Kg static load on the terminal of the pump will not cause a damage on the pump.



  • Environmental Tests
Low-temperature characteristic Putting the pump in the temperature at negative 20℃ for 72 hours;then taking it out and putting it in a room temperature at 20± 5℃ for 2 hours,Under this circumstance,running through performance test and finding out that the pump still performs well.
High-temperature characteristic Putting the pump in the temperature at 60℃ for 72 hours; then taking it out and putting it in a room temperature at 20 ± 5 ℃ for 2 hours,Under this circumstance,running through perforamance and finding out that the pump still performs well.
High-temperature & High humidity Putting the pump in the temperature at 60℃ and the humidity at 95% for 72 hours;then taking it out and putting it in a room temperature at 20 ± 5 ℃ for 2 hours.Under this circumstance,running through performance test and finding out that the pump still performs well.
Temperature & humidity cycle test After doing the temperature and humidity cycle test,-20℃* 2Hr → +25℃* 1Hr→ +60℃ 85%RH* 2Hr →+25℃*1Hr,for twelve times,the pump shall still perform the same functions proved by running through performance test.
Life test The pump for drawing water, on 60 seconds, stopping for 30 seconds is as one cycle, Doing it for 500 hours, then examine the pump if it is in a good function.





Drawing:
Mini 12v Dc Diaphragm Water Pump For Waterpik Automatic Teapot Tooth Cleaner 0







Application: Tooth cleanier, Waterpik, Automatic Teapot



Mini 12v Dc Diaphragm Water Pump For Waterpik Automatic Teapot Tooth Cleaner 1
