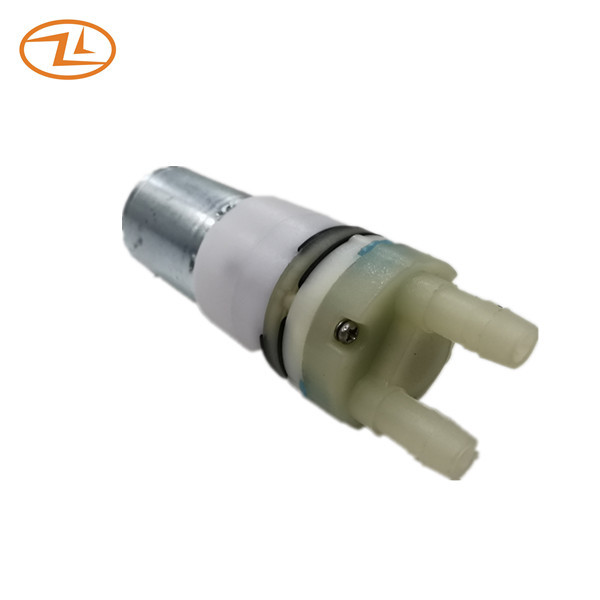

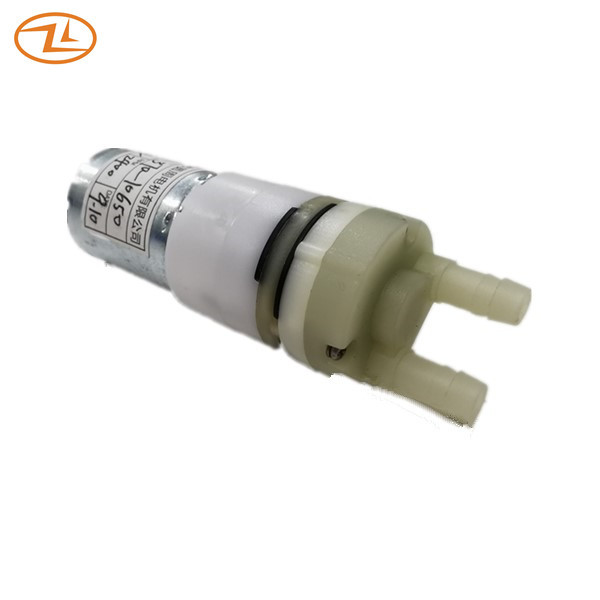

Diaphragm Pump DC Water Pump Air Pressure 300mmHg Water Flow 1.2L/M
Specification:
| Rated voltage | 12.0VDC |
| Operating voltage | 9.6 - 14.4 VDC |
| Load | Air pressure 300mmHg |
| Test Environment | Ambient temperature of 20℃ and relative humidity of 65%RH. |
| Air flow(free load) | ≥0.8L/min with no load. |
| Water flow(free load) | ≥ 1200mL/min with no load. |
| Rated current | ≤ 400mA |
| Restart voltage | Operating voltage range gas filled pressure untills -30KPa(30 KPa) pineland then add DC9.6V voltage pump should restart. |
| Noise | The sponge of 5 cm underlying is 30 cm away from the noise meter. The dB value measured by DC 12V power supply pumping is less than 55 dB. |
| Terminal tension | Hanging a 0.5 Kg static load on the terminal of the pump will not cause a damage on the pump. |
| Life test | The pump for drawing water, on 60 seconds, stopping for 30 seconds is as one cycle, Doing it for 500 hours, then examine the pump if it is in a good function. |
Drawing:
Application: Tooth cleanier, Waterpik
