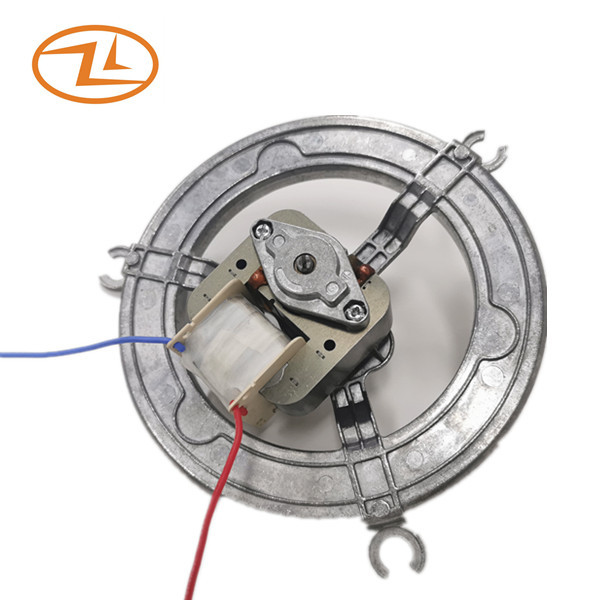

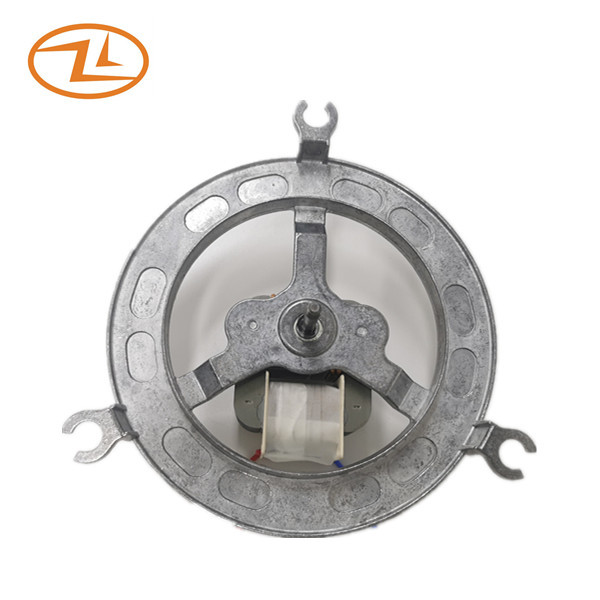

Multipurpose Air Fryer Motor YJ61-25L Ball Bearing CL.H 120V 60HZ
This type of shaded pole motor is mainly applied in Air Fryer products.Fan impellers are customized for cooling the motor and blowing the heat into the food area. It is flexible in stack thickness, shaft dimension, bearings and fitting dimensions.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | |||
|
Current A |
Input Power W |
Speed RPM |
|||
| YJ61-25L | 120 | 60 | 0.71+/-15% | 44+/-15% | >=3300 |
| YJ61-25L | 230 | 50 | 0.32+/-15% | 35+/-15% |
>=2700 |
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load | ||||
|
Current A |
Speed RPM |
Current A |
Input Power W |
Speed RPM |
|||
| YJ61-16 | 120 | 60 | 0.3 | 3300 | 0.35 | 27 | 2900 |
| YJ61-20 | 120 | 60 | 0.4 | 3300 | 0.5 | 38 | 3000 |
| YJ61-25 | 120 | 60 | 0.5 | 3300 | 0.6 | 45 | 3000 |
| YJ61-16 | 230 | 50 | 0.2 | 2800 | 0.25 | 25 | 2500 |
| YJ61-20 | 230 | 50 | 0.25 | 2800 | 0.3 | 35 | 2550 |
| YJ61-25 | 230 | 50 | 0.3 | 2800 | 0.35 | 42 | 2550 |
Drawing:
Application: Air fryer
