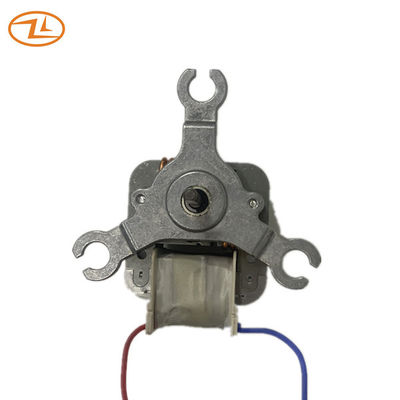

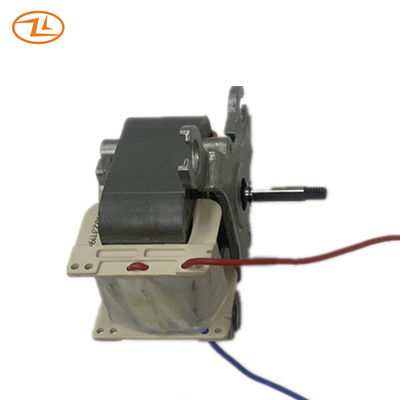

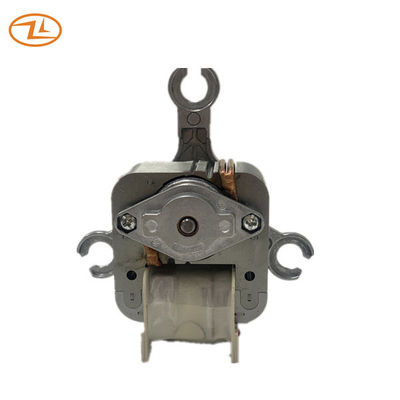

Shaded Pole Motor For Electric Grill With Air Fryer Use YJ62/300L 120V 60HZ FG551
This type of shaded pole is mainly applied in smart cook with multi-function like air fryer, bake, roast, broil.We can also provide fan impellers (for cooling and blowing the heat into the food).
|
Model
|
Rated Voltage/ Frequency V/HZ |
On Load | ||||
| Starting voltage V |
Current A |
Input Power W |
Speed RPM |
|||
| YJ62/300L | 120 | 60 | <96V | <=1.15 | 67+/-15% | 2900+/-200 |
| Rated voltage/frequency | 120V 60HZ |
| Insulation class | CL.H |
| Rotation direction | CW (view from the output shaft) |
| Working Temp. | 0~40℃ |
| Working humidity | 90% RH max |
| Voltage fluctuation | 5% range of the rated voltage at rated load |
| Insulation resistance | The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger) |
| Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. |
| Extreme temp. limit | 180℃ |
Drawing:
Application: Air fryer with multi-functions
