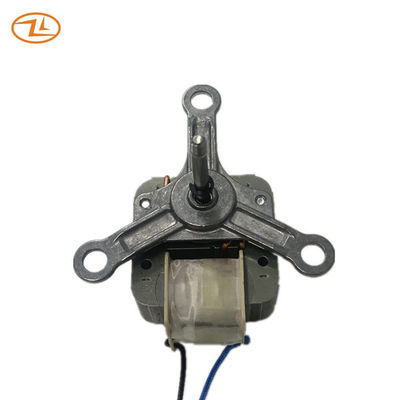

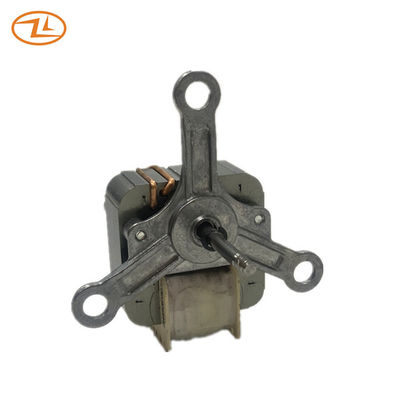

Air Fryer Shaded Pole Motor Multi-Function DZ201 YJ60-25L 120V 60HZ With Thermal Protector
This is one kind of shaded pole motors, mainly applied in Air Fryer products. It is flexible in stack thickness, shaft dimension, bearings and fitting dimensions. We can also provide fan impellers (for cooling and blowing the heat into the food)
|
Model
|
Rated Voltage/ Frequency V/HZ |
On Load | ||||
| Starting voltage V |
Current A |
Input Power W |
Speed RPM |
|||
| YJ60-25L | 120 | 60 | <102V | <=0.85 | 45+/-15% | 2900+/-200 |
| YJ60-25 | 220 | 50 | <195V | <=0.45 | 36+/-15% | 2500+/-200 |
Drawing:
Application: Air fryer use (multi-function electric grille)
