YJ62/300 Air Fryer Motor 230V 50HZ Long Life Ball Bearing With Thermal Fuse

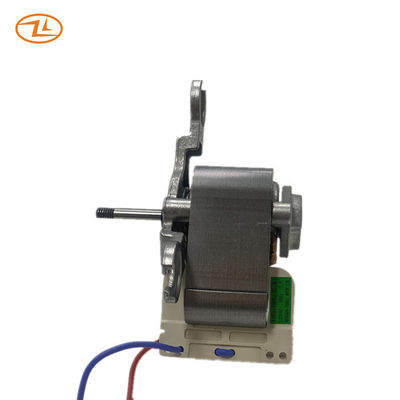

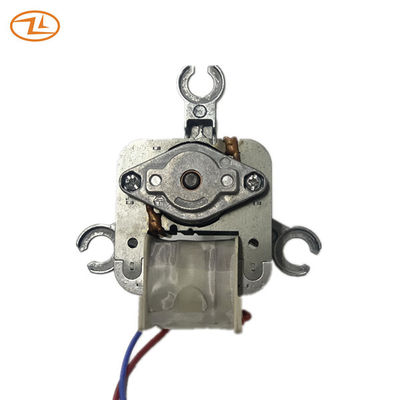

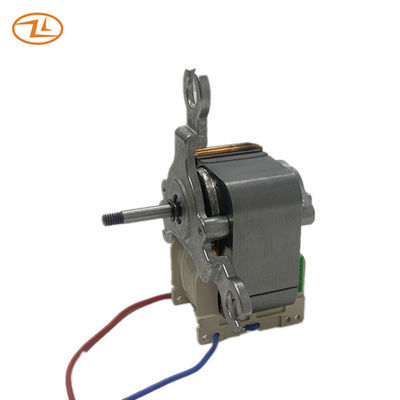

This is one kind of shaded pole motors, mainly applied in Air Fryer products. It is flexible in stack thickness, shaft dimension, bearings and fitting dimensions.We can also provide fan impellers (for cooling and blowing the heat into the food)
|
Model
|
Rated Voltage/ Frequency V/HZ |
On Load | ||||
| Starting voltage V |
Current A |
Input Power W |
Speed RPM |
|||
| YJ62/300L | 120 | 60 | <96V | <=1.15 | 67+/-15% | 2900+/-200 |
| YJ62/300L | 230 | 50 | <195V | <=0.55 | 48+/-15% | 2500+/-200 |
Insulation resistance: The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength: It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Drawing:
Application: Air fryer
