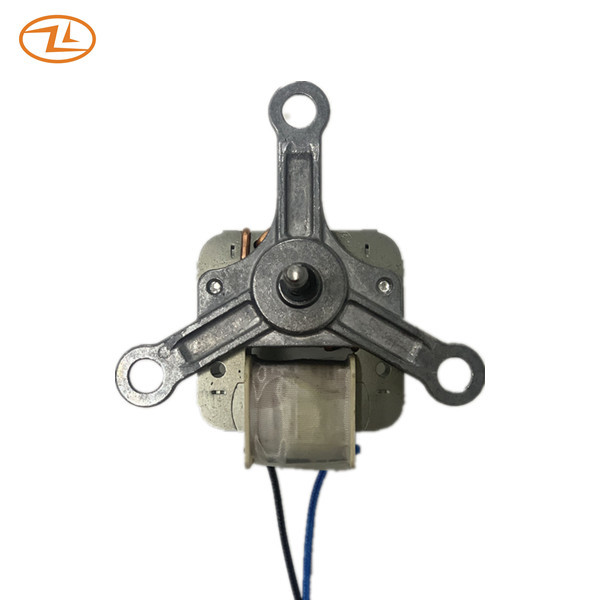

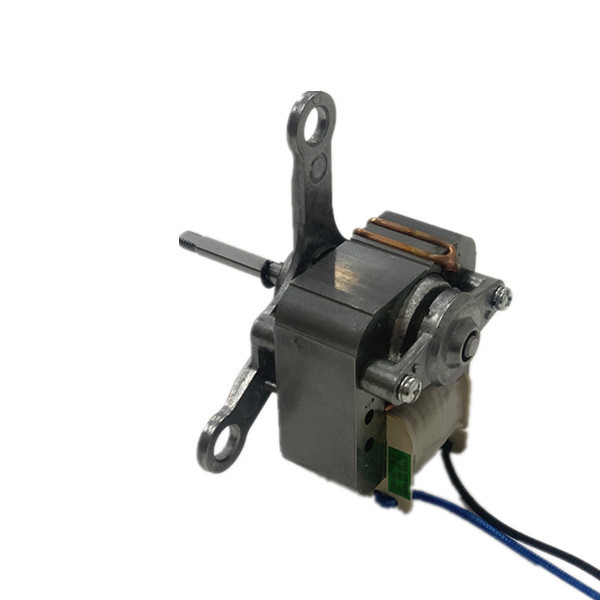

YJ60-25 Air Fryer Motor ELectric Oven Fan Motor 230V 50HZ With Thermal Protector CL.H
|
Model
|
Rated Voltage/ Frequency V/HZ |
On Load | ||||
| Starting voltage V |
Current A |
Input Power W |
Speed RPM |
|||
| YJ60-25 | 220 | 50 | <195V | <=0.45 | 36+/-15% | 2500+/-200 |
| Rated voltage/frequency | 230V 50HZ |
| Insulation class | CL.H |
| Rotation direction | CW (view from the output shaft) |
| Working Temp. | 0~40℃ |
| Working humidity | 90% RH max |
| Voltage fluctuation | 5% range of the rated voltage at rated load |
| Insulation resistance | The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger) |
| Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. |
| Extreme temp. limit | 180℃ |
Drawing:
Application: Air fryer
