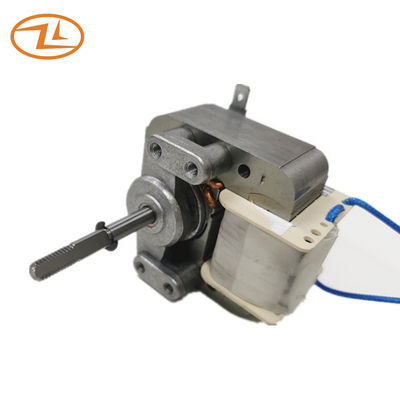

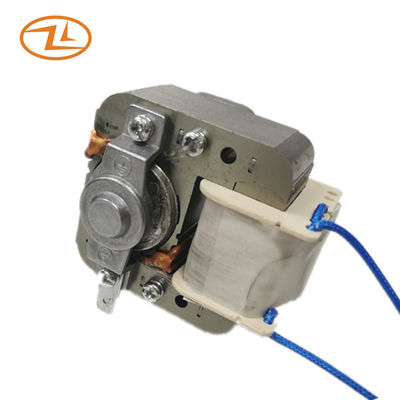

Air Fryer Motor Shaded Pole Motor YJ61/300 220V 60HZ CL.H With 4 Fitting Holes Bracket
This type of shaded pole motor is mainly applied in Air Fryer products.Fan impellers are customized for cooling the motor and blowing the heat into the food area. It is flexible in stack thickness, shaft dimension, bearings and fitting dimensions.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load | ||||
|
Current A |
Speed RPM |
Current A |
Input W |
Speed RPM |
|||
| YJ61/300 | 220 | 60 | 0.28 | 3300 | <=0.45 | 59+/- 15% | 1250+/-150 |
| YJ60-25L | 120 | 60 | 0.5 | 3300 | <=0.85 | 45+/- 15% | 2900+/-200 |
| YJ60-25L | 230 | 50 | 0.3 | 2800 | <=0.45 | 36+/- 15% | 2500+/-200 |
Drawing:
Application: Air fryer / oven
