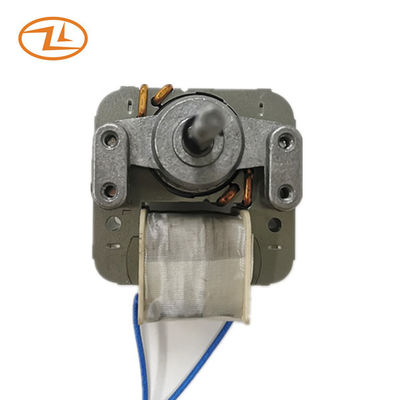

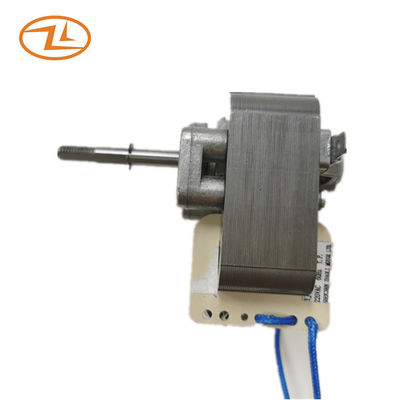

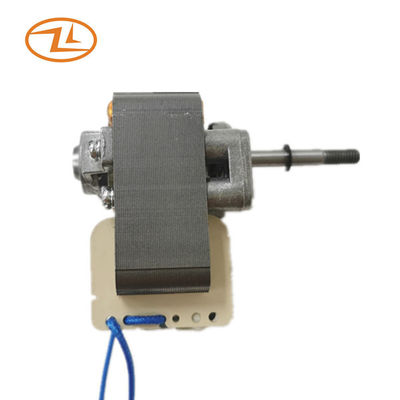

Air Fryer Motor YJ60-25 220V 60HZ CL.H Fitting Flexible Oven Fan Motor
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load | ||||
|
Current A |
Speed RPM |
Current A |
Input W |
Speed RPM |
|||
| YJ60-25 | 220 | 60 | 0.28 | 3300 | <=0.45 | 59+/- 15% | 1250+/-150 |
| YJ60-25L | 120 | 60 | 0.5 | 3300 | <=0.85 | 45+/- 15% | 2900+/-200 |
| YJ60-25L | 230 | 50 | 0.3 | 2800 | <=0.45 | 36+/- 15% | 2500+/-200 |
This type of shaded pole motor is mainly applied in Air Fryer products. The bracket is decsigned especially for fitting use with 4 holes to stablize the motor inside the products. It is flexible in stack thickness, shaft dimension, bearings and fitting dimensions.
Drawing:
Application: Air fryer / oven
