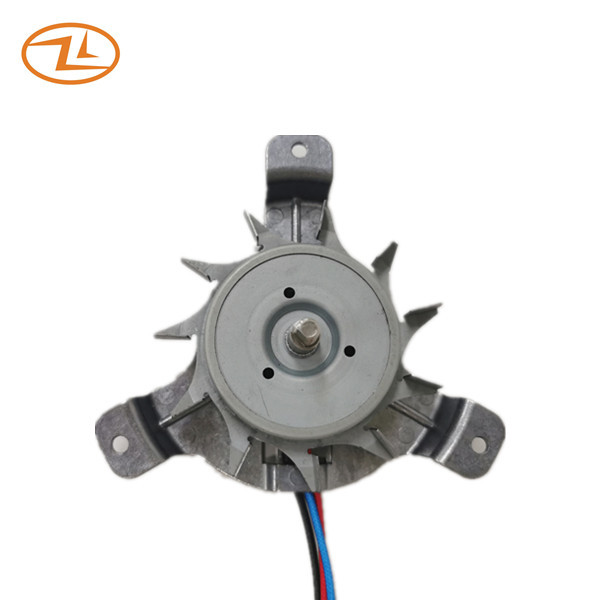

Name: BLDC Fan Motor
Rated Voltage: 12VDC
Stack Size: φ42mm
Bearing: Ball Bearings
Number Of Stator Slots: Six
Number Of Magnet Poles: Four
Construction: Outer Rotor
Number Of Phases: Three Phase
Rectifying Method: Electronices
Control Type: PWM
Output Signal: FG
Packing: Customized Packing
Printing: Customized Printing
Application: Oven/microwave Oven
High Light:

12V PWM BLDC Motor


FG Signal PWM BLDC Motor


Oven 1800 Rpm DC Motor

Basic Infomation
Place of Origin: China
Brand Name: Zhaoli
Certification: CE, ROHS, REACH
Model Number: D6T42H2B01
Payment & Shipping Terms
Packaging Details: cartons + pallets
Delivery Time: 25-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000pcs per day
Product Description

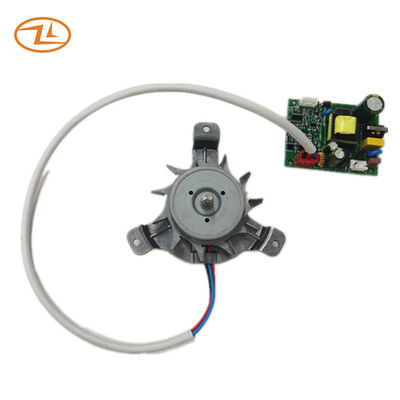

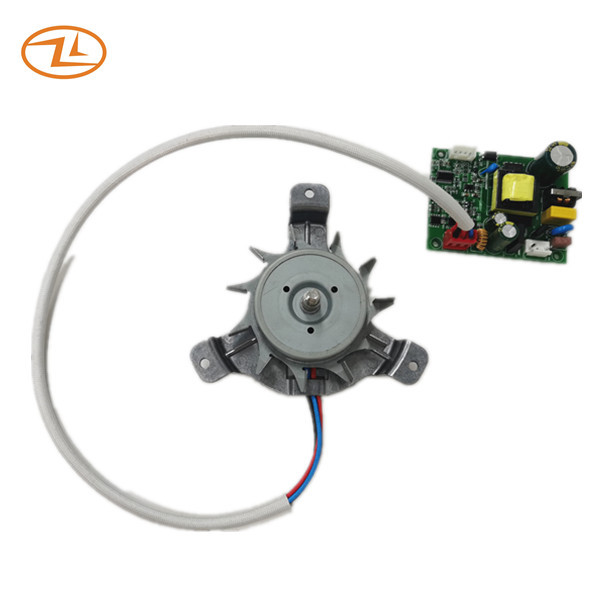

BLDC Motor For Oven Fan Use PWM Control FG Signal 12VDC With Driver And Controller

  • Operating condition
Rated voltage 12VDC
Operating voltage 10.8 - 13.2 VDC
Rotation direction CW
Working duty continuous
Operating condition 0℃~120℃, RH 5%~90%
Storage condition -20℃~60℃, RH 5%~90%


  • Motor electric characteristics
Rated voltage 12VDC
Rated speed(free load) 1800+/- 10% RPM
Rated current(free load) 4.5W max
Rated load 69.5mN.m
Rated speed(on load) 1800+/- 10% RPM
Rated current(on load) 18W max
Insulation resistance 10MΩmin. (500VDC)
Dielectric strength 600VAC/1S leakage current <=5mA
Temperature rise <60K


  • Motor driver and controller

The motor drive is DC chord vector control, and its characteristics are shown in the following table:

Input voltage 100-255VAC
Input power 20W
Output voltage 12VDC
Output power 18W max
Control method PWM input
Position detection method FOC
PWM signal

PWM frequency range: 15-28KHz

Duty cycle range: 1%~99%

L level: 0-1.0V; H level: 2-5.5V

FG signal 1800 Rpm Oven PWM BLDC Motor  FG Signal 12V DC With Controller 0
Soft start function After the controller is powered on, the motor is slowly accelerated to the required value after starting.
Locked rotor protection When the load brought by the motor encounters great resistance from the outside to stop the motor, the controller temporarily stops the motor. After a few seconds, the motor tries to start. If the resistance is absent, the motor runs normally. If the resistance is still present, the motor stops temporarily again. After several cycles, the motor stops. Manually remove the resistance, and press again to start the motor.
Over current protection If the motor current suddenly increases beyond the set value due to external factors, the motor will stop running.
Open phase protection When one or two of the three phases of the motor are not energized, the motor stops running.




1800 Rpm Oven PWM BLDC Motor  FG Signal 12V DC With Controller 1



Application: smart home appliances, like oven, mircowave oven.
