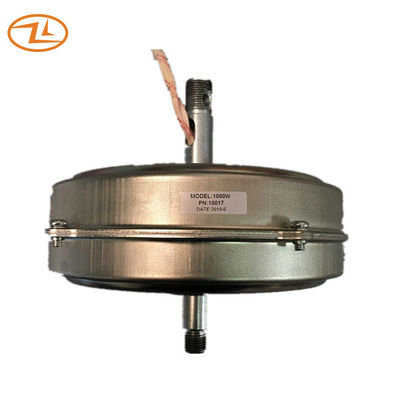

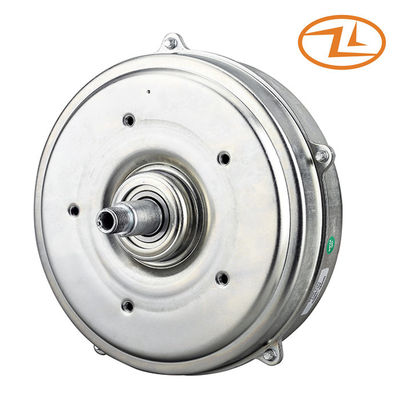

BLDC Ceiling Fan Motor For 56 Inch Ceiling Fan 240VAC 25W Long Life Controller Supply
Brushless DC motor uses electronic communtation instead of mechanical steering. Compared with Brush DC motor, it has long working life and eliminates mechanical steering's noise, sparks and electromagnetic interference and so on. It is of great convenience and reasoning to control motor's performance. Brushless DC motor can be mainly divided into two parts, motor and circuit control. Motor is composed of rotor which its main component is permanent magnet and of stator which its main component is silicon steel sheet and copper wire.
This motor is also called EC motor. No transformer need. The motor controller functions as "AC to DC" and supply DC power to motor.
| Model |
Bearing type Ball/sleeve |
Rated voltage VAC |
Operating voltage VAC | Rated input power W |
Speed RPM |
Load |
Life hours |
| EBTF0LBB01 | Ball bearing | 240 | 160~270 | 25 | 175 | 56inch fan | 30,000 |
| EBTF0LAB01 | Ball bearing | 120 | 90~150 | 30 | 100 | 68inch fan | 30,000 |
| EBTF0LBB02 | Ball bearing | 240 | 160~270 | 35 | 110 | 72inch fan | 30,000 |
| EBTF0LBB03 | Ball bearing | 240 | 160~270 | 400 | 130 | 2.8M fan | 30,000 |
Drawing:
Application: Ceiling fan
