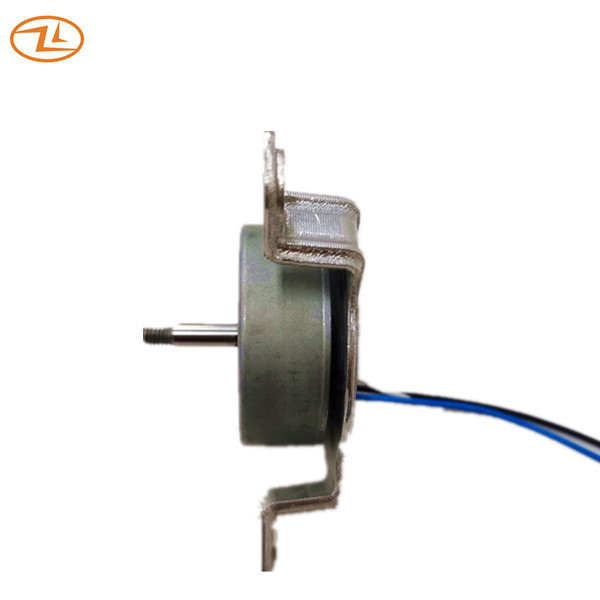

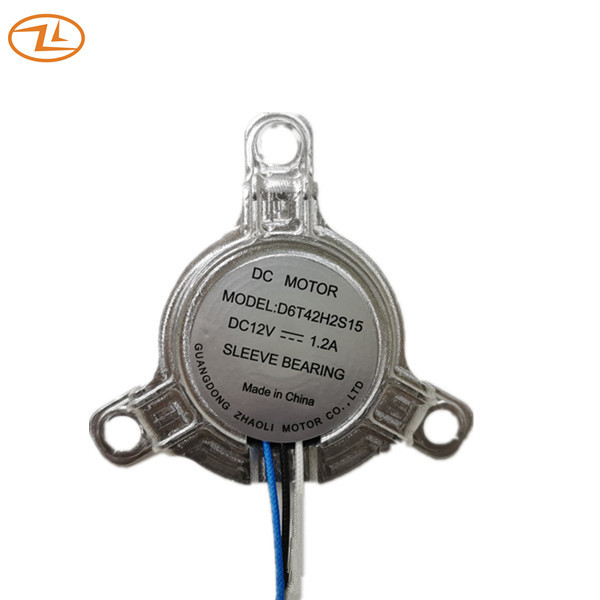

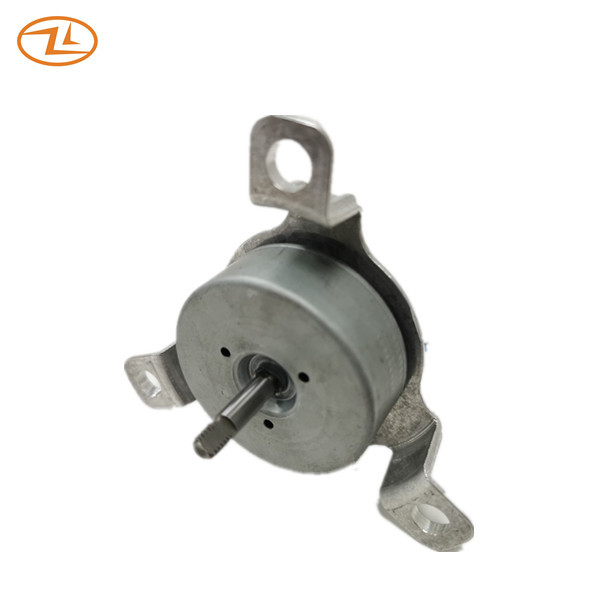

BLDC Motor For Air Fryer Oven Supplied With PCBA Motor Driver Controller
| Rated voltage | 12VDC |
| Operating voltage | 10.8~13.2VDC |
| Rated load | 42mN.m |
| Rated speed(on load) | 1600+/- 15% RPM |
| Rated power(on load) | 9W |
| Rotation direction | Bi-direction |
| Insulation class | CL.H |
| Insulation resistance | 10MΩmin. (500VDC) |
| Dielectric strength | 600VAC/1S leakage current <=5mA |
| Temperature rise | <75K |
The motor drive is DC chord vector control, and its characteristics are shown in the following table:
| Output voltage | 12VDC |
| Output power | 9W |
| Control method | PWM |
| Position detection method | FOC |
| PWM signal |
PWM frequency range: 15-28KHz Duty cycle range: 1%~99% L level: 0-1.0V; H level: 2-5.5V |
Drawing:
Application: Air fryer with multi-fuction and smart control
