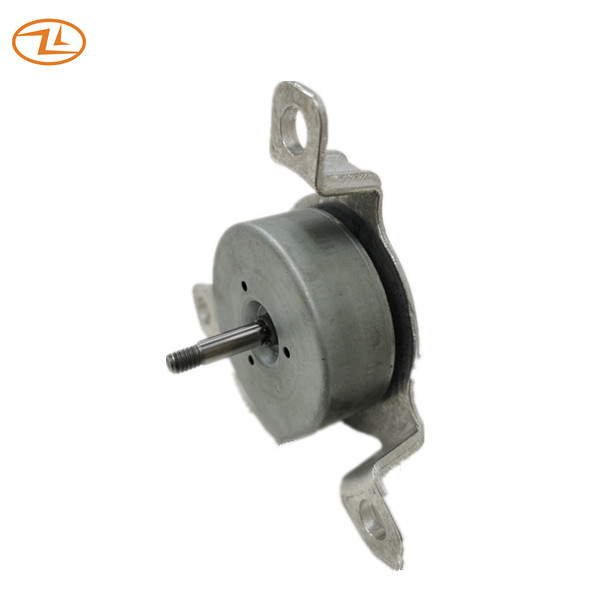

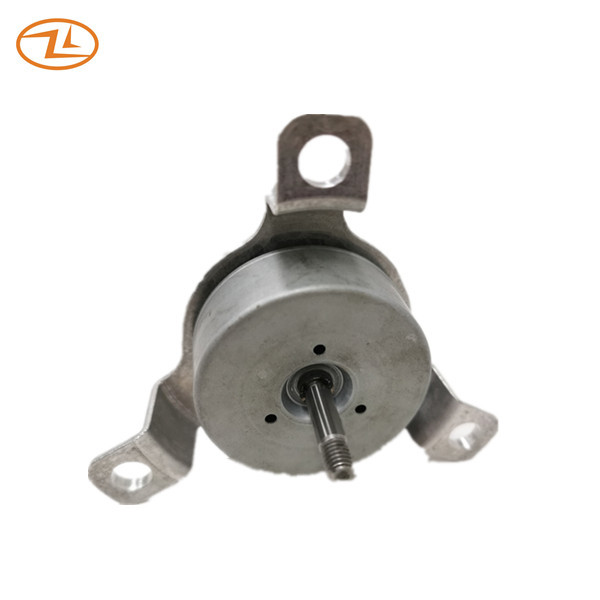

Air Fryer Oven Pmw Control Bldc Fan Motor 12v 9w Electronic Driver

Air Fryer Oven Pmw Control Bldc Fan Motor 12v 9w Electronic Driver
Features Gallery Product Description Request A Quote
Name: BLDC Fan Motor
Rated Voltage: 12VDC
Stack Size: φ42mm
Bearing: Sleeve Bearings
Number Of Stator Slots: Six
Number Of Magnet Poles: Eight
Construction: Outer Rotor
Number Of Phases: Three Phase
Rectifying Method: Electronices
Control Type: PWM
Output Signal: FG
Packing: Customized Packing
Printing: Customized Printing
Application: Air Fryer/oven
High Light:

air fryer oven bldc fan motor


12v bldc fan motor


9w bldc fan motor

Basic Infomation
Place of Origin: China
Brand Name: Zhaoli
Certification: CE, ROHS, REACH

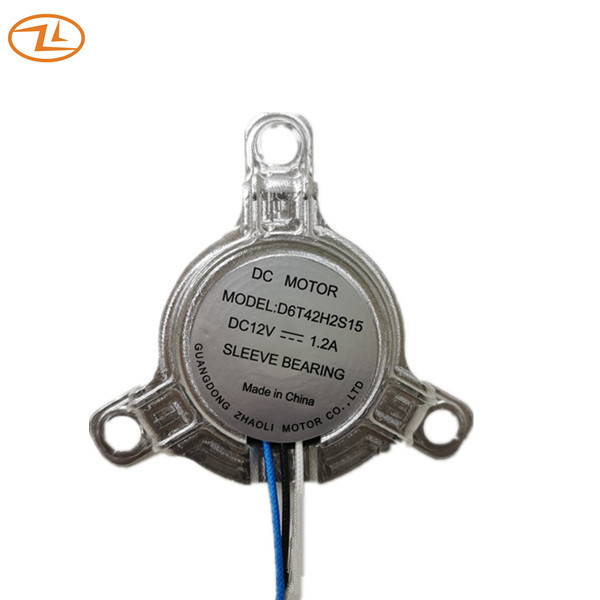

Model Number: D6T42H2S12
Payment & Shipping Terms
Packaging Details: cartons + pallets
Delivery Time: 25-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000pcs per day
Product Description

BLDC Motor For Air Fryer Oven PMW Control 12V 9W Electronic Driver


This motor is designed specially for air fryer and oven product. The motor driver is combined with the power supply PCBA to achieve "one solution" and lower cost.


  • Motor characteristics
Rated voltage 12VDC
Rated load 42mN.m
Rated speed(on load) 1600+/- 15% RPM
Rated power(on load) 9W
Insulation class CL.H
Insulation resistance 10MΩmin. (500VDC)
Dielectric strength 600VAC/1S leakage current <=5mA


  • Motor driver and controller

The motor drive is DC chord vector control, and its characteristics are shown in the following table:

Output voltage 12VDC
Output power 9W
Control method PWM
Position detection method FOC
PWM signal

PWM frequency range: 15-28KHz

Duty cycle range: 1%~99%

L level: 0-1.0V; H level: 2-5.5V

Soft start function After the controller is powered on, the motor is slowly accelerated to the required value after starting.
Locked rotor protection When the load brought by the motor encounters great resistance from the outside to stop the motor, the controller temporarily stops the motor. After a few seconds, the motor tries to start. If the resistance is absent, the motor runs normally. If the resistance is still present, the motor stops temporarily again. After several cycles, the motor stops. Manually remove the resistance, and press again to start the motor.
Over current protection If the motor current suddenly increases beyond the set value due to external factors, the motor will stop running.



Air Fryer Oven Pmw Control Bldc Fan Motor 12v 9w Electronic Driver 0



Application: Air fryer/ Oven
