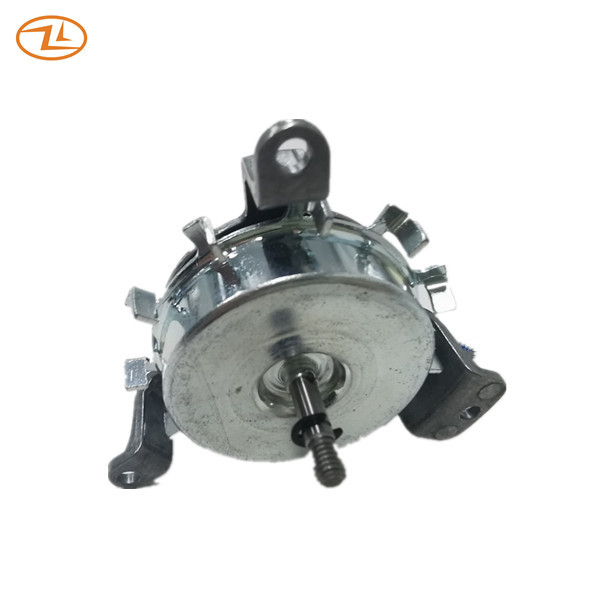

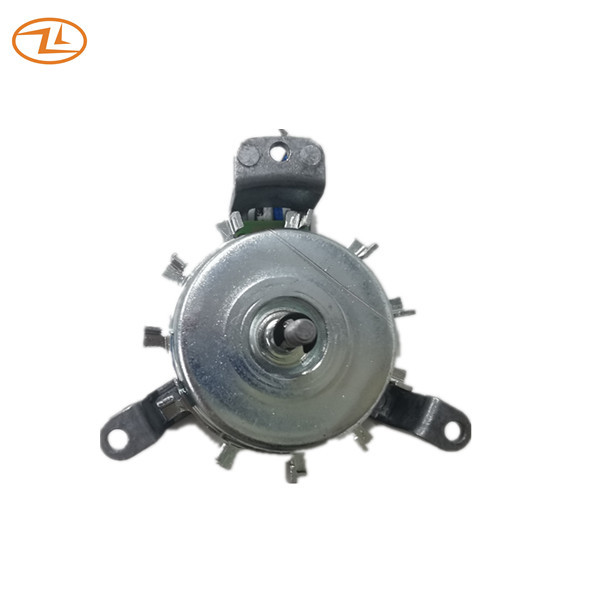

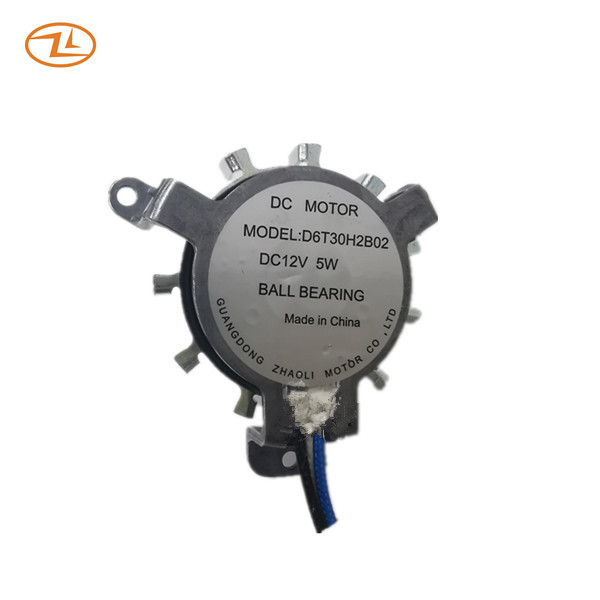

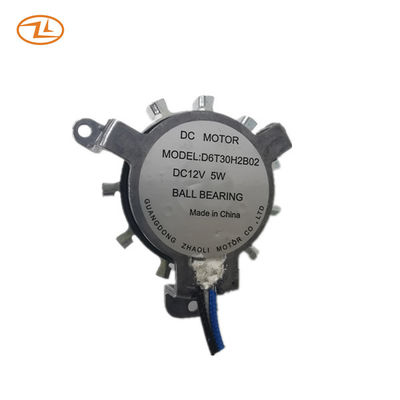

Microwave Oven BLDC Motor Flexible Speed Adjustment By PWM Control
| Rated voltage | 12VDC |
| Operating voltage | 10.8~13.2VDC |
| Rotation direction | CCW |
| Working duty | continuous |
| Operating condition | 0℃~120℃, RH 5%~90% |
| Storage condition | -20℃~60℃, RH 5%~90% |
| Rated voltage | 12VDC |
| Rated load | 15.9mN.m |
| Rated speed(on load) | 1850+/- 5% RPM |
| Rated power(on load) | 5W |
| Insulation class | CL.H |
| Insulation resistance | 10MΩmin. (500VDC) |
| Dielectric strength | 600VAC/1S leakage current <=5mA |
| Temperature rise | <75K |
| Noise | Measured at 50CM from motor rated voltage rated speed, no load under controlled condition, undergrounged noise level is less than 50dBA |
Motor Driver and Controller
| Input voltage | 100~255VAC |
| Output voltage | 12VDC |
| Output power | 5W |
| Control method | PWM |
| Position detection method | FOC |
| Soft start function | After the controller is powered on, the motor is slowly accelerated to the required value after starting. |
Drawing:
Application: Microwave Oven
