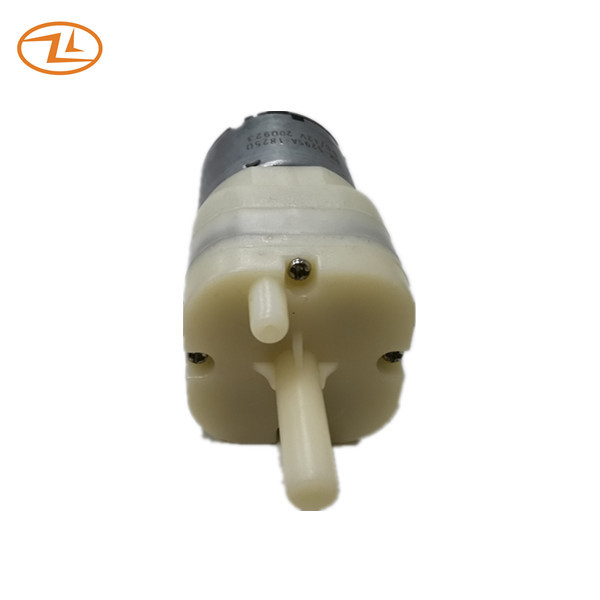

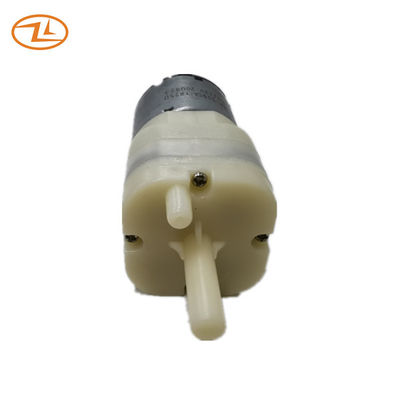

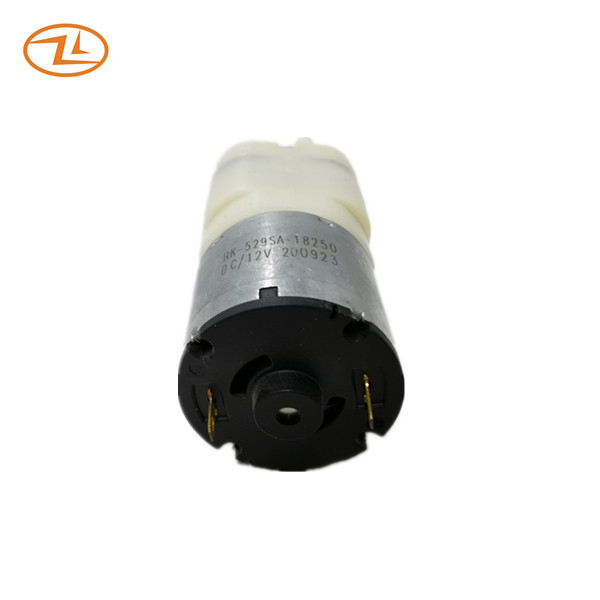

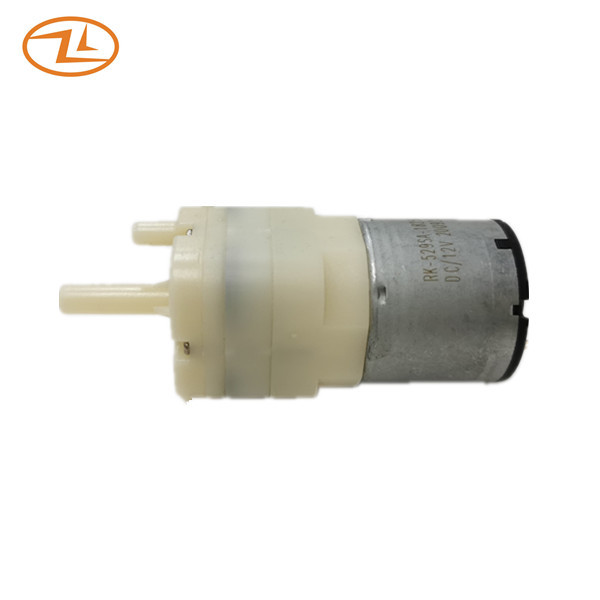

Diaphragm Pum Mini Air Pump Motor For Portable Nebulizer 20psi
Diaphragm Pump Specification:
| Rated voltage | 12.0VDC |
| Operating voltage | 10.0 - 14.4 VDC |
| Rated current | The highest current is less than 450mA while pressurizing with DC12.0V at 0mmHg. |
| Flow rate at no load | ≥5.0L/min |
| Max pressure | The maximum pressure value shall be more than 20psi. |
| Noise | Putting a 5 cm sponge under the pump motor, and use noise meter with 30 cm away from the pump motor,the averaged noise shall be less then 62dB , with DC 12.0V from 0 to 20psi. |
Drawing:
Application: Portable nebulizer, Inhaler, Atomizer
