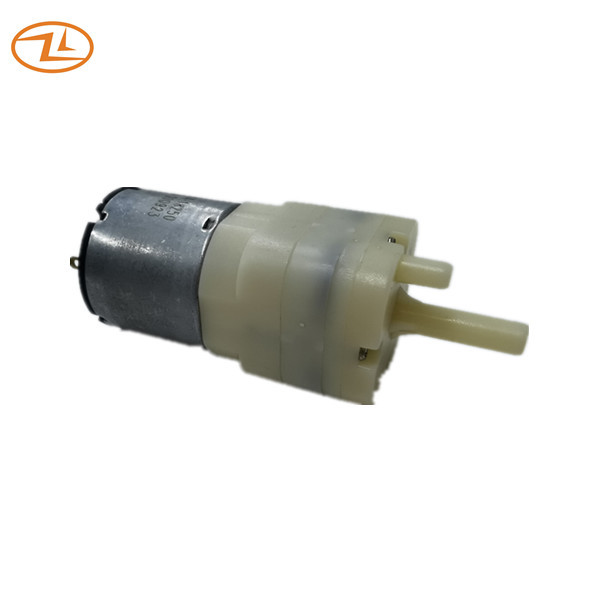

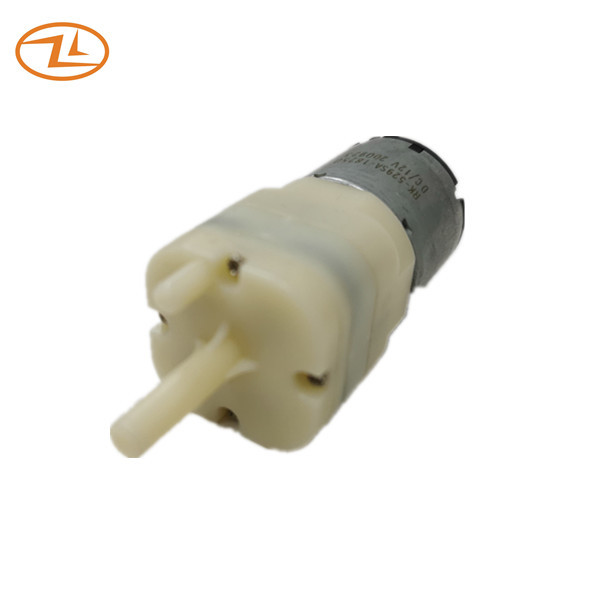

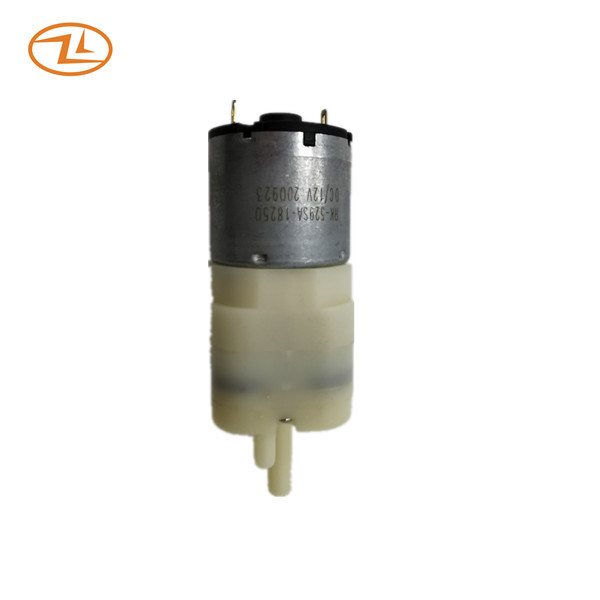

DC Air Pump For Portable Nebulizer Small Size Long Life 12VDC
| Test Environment | Ambient temperature of 20℃ and relative humidity of 65%RH. |
| Position | Horizontal |
| Load | Air pressure 300mmHg |
| Operating condition | -10℃~45℃, RH 30%~80% |
| Storage condition | -20℃~60℃, RH 30%~80% |
| Rated voltage | 12.0VDC |
| Operating voltage | 10.0 - 14.4 VDC |
| Rated current | ≤450mA (DC12.0V at 0mmHg) |
| Flow rate at no load | ≥5.0L/min |
| Max pressure | ≥20psi |
Drawing:
Application: Portable nebulizer, Inhaler, Atomizer
