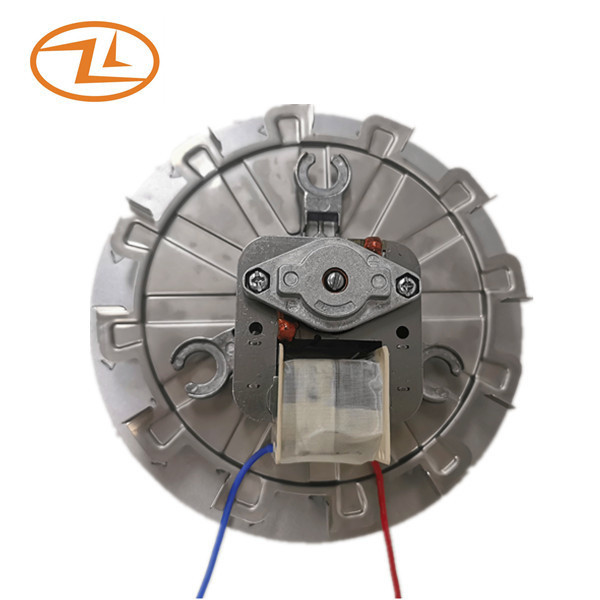

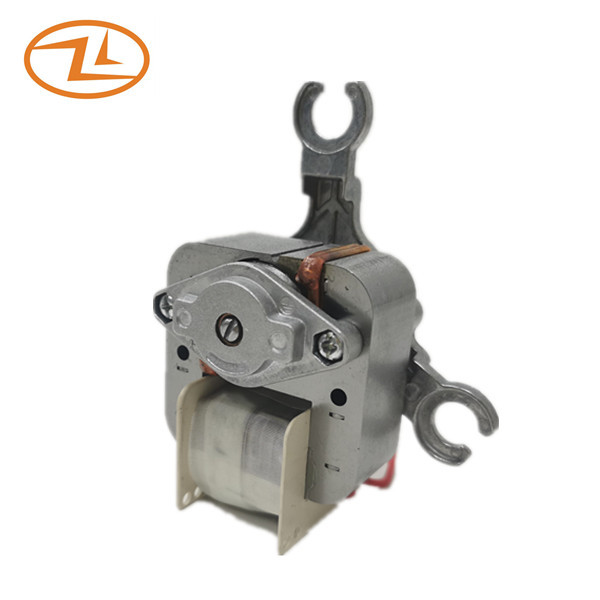

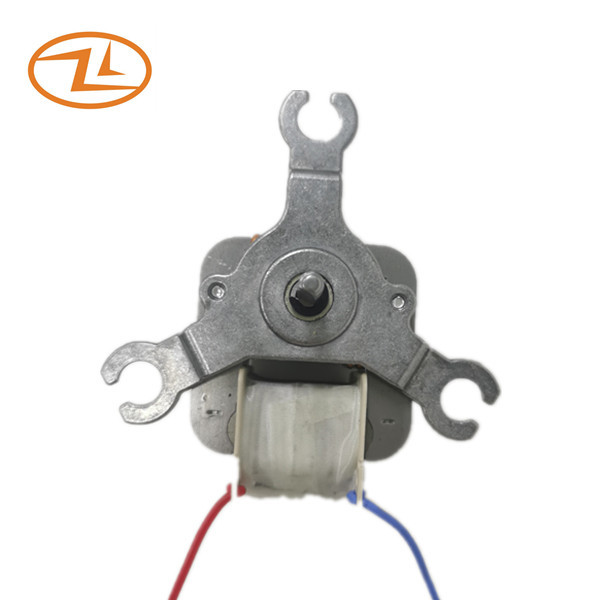

Air Fryer Shaded Pole Motor YJ61/300L 230V 50HZ With Impeller For Multi-Cooker
This type of shaded pole is mainly applied in multi-cooker which can air fryer, broil, dehydrate and more.We can also provide fan impellers (for cooling and blowing the heat into the food area).
Upon customers' need, it is flexible to adjust the motor performance, shaft dimension, fitting dimensions and so on.
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | |||
|
Current A |
Input Power W |
Speed RPM |
|||
| YJ61-25 | 230 | 50 | <=0.5 | 37+/-15% | >=2700 |
| YJ61-25 | 120 | 60 | <=0.9 | 40+/-15% | >=3300 |
Drawing:
Application: Air fryer
