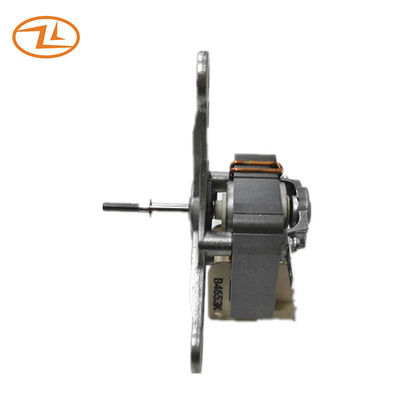

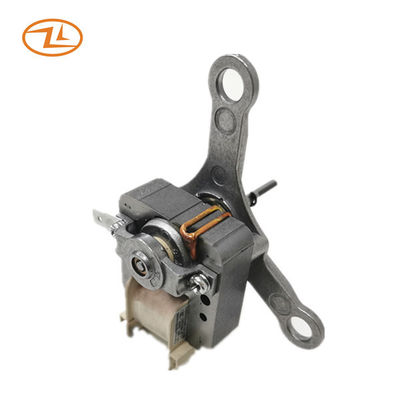

Small Air Fryer Motor Shaded Pole Motor YJ48-16 220V 50HZ CL.H For Convection Air Fryer
This type of shaded pole is mainly applied in air fryer with dedicated design.
Upon customers' need, it is flexible to adjust the motor performance, shaft dimension, fitting dimensions and so on and fan impellers can be also supplied.
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load | ||||
|
Current A |
Speed RPM |
Current A |
Input W |
Speed RPM |
|||
| YJ48-16 | 220 | 50 | <=0.13 | 2700 | <=0.14 | <= 18 | 2400+/-150 |
Drawing:
Application: Air fryer
