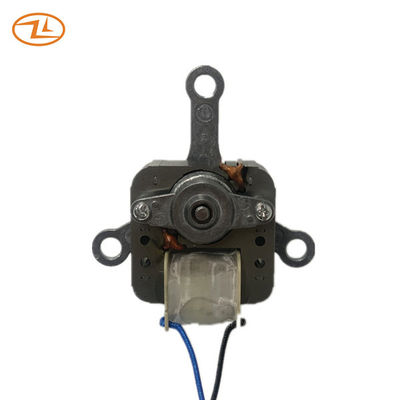

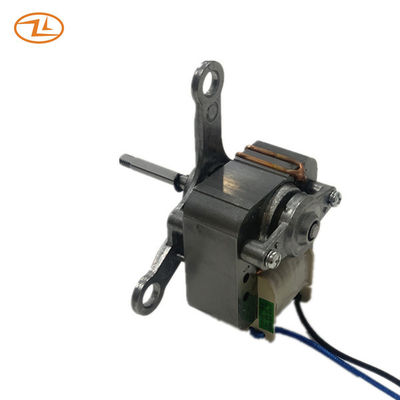

Air Fryer Motor Shaded Pole Motor YJ60-25L 120V 60HZ CL.H Electric Grill Use
|
Model
|
Rated Voltage/ Frequency V/HZ |
On Load | ||||
| Starting voltage V |
Current A |
Input Power W |
Speed RPM |
|||
| YJ60-25L | 120 | 60 | <102V | <=0.85 | 45+/-15% | 2900+/-200 |
| Rated voltage/frequency | 120V 60HZ |
| Insulation class | CL.H |
| Rotation direction | CW (view from the output shaft) |
| Voltage fluctuation | 5% range of the rated voltage at rated load |
| Insulation resistance | The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger) |
| Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. |
| Extreme temp. limit | 180℃ |
Drawing:
Application: Air fryer
