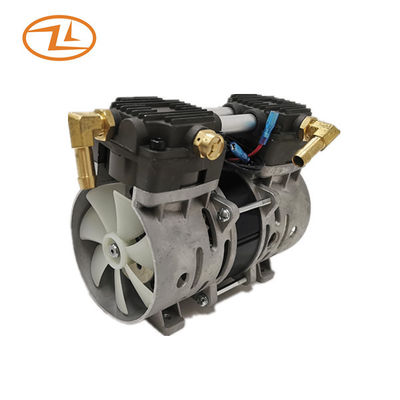

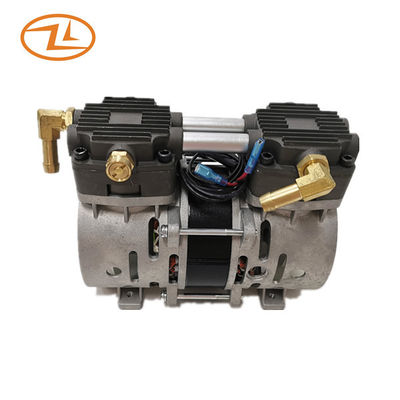

Oilless Air Compressor Oil Free Air Compressor For Oxygen Concentrator 3L
Oil-free air compressor features:
Oil-less operation(clean air stream, less maintenance)
Permanently lubricated ball bearing(optimum life)
Brass valves(optimum life, consistent performance, corrosion resistance)
High performance piston seal (optimum life)
Die-cast aluminum components(strong, lightweight, durable)
Thin wall, hard coated aluminum cylinder(maxium heat transfer)
Wetted parts treated for corrosion resistance
Dynamically balanced(low operation vibration)
Thermally protected motor
Pressure relief valve included
Twin fans provide cooling air for the motor and cylinders
Low noise
Continous duty
Specification:
| Model | ZL190A-45-140-09 | ZL190A-45-140-XX |
| Rated voltage/frequency V/HZ | 220V/ 50HZ | 120V/ 60HZ |
| Rated speed RPM | 1350RPM | 1650RPM |
| Rated input power W | 210W | 230W |
| Working pressure Kpa | 140kpa | 140kpa |
| Rated air flow L/M | >=45L/M | >=45L/M |
Insulation resistance: The cold insulation resistance of motor shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength: It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Drawing:
Application: This model is mainly applied in 3L oxygen concentrator or any other atomizer/ vacumm use.
