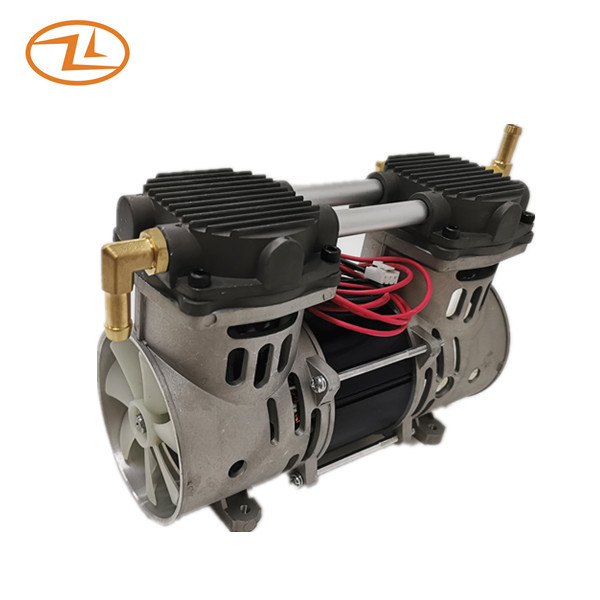

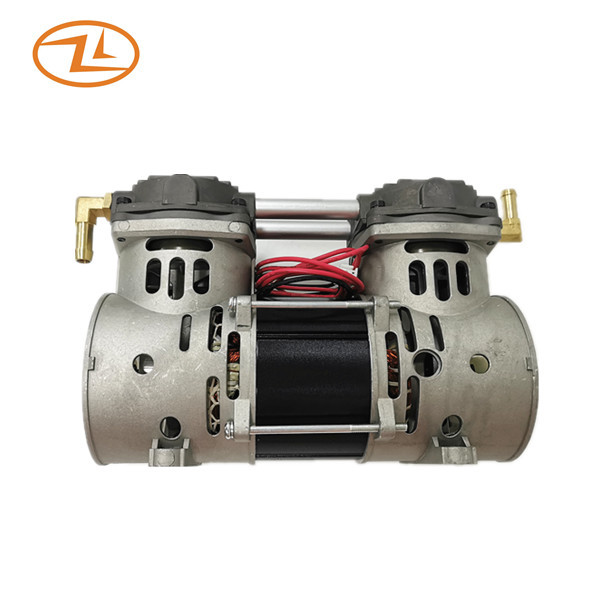

110V Portable Oxygen Concentrator Air Compressor Pump Thermally Protected Motor
Specification:
| Model | ZL280A-60-185-14 | ZL280A-60-185-XX |
| Rated voltage/frequency V/HZ | 220V/ 50HZ | 120V/ 60HZ |
| Rated speed RPM | 1350RPM | 1680RPM |
| Rated input power W | 310W | 320W |
| Working pressure Kpa | 185kpa | 185kpa |
| Rated air flow L/M | >60L/M | >60L/M |
| Thermal protection | Thermal protector 145℃ | |
| Noise | <60dbA | |
| Insulation resistance | The cold insulation resistance shall be more than 100MΩ(tested by DC 500V megger) | |
| Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. | |
Oilless air compressor features:
Oil-less operation(clean air stream, less maintenance)
Permanently lubricated ball bearing(optimum life)
Brass valves(optimum life, consistent performance, corrosion resistance)
Die-cast aluminum components(strong, lightweight, durable)
Thin wall, hard coated aluminum cylinder(maxium heat transfer)
Pressure relief valve included
Dynamically balanced(low operation vibration)
Continous duty
Drawing:
Application: Often used for 5L Oxygen generator.
