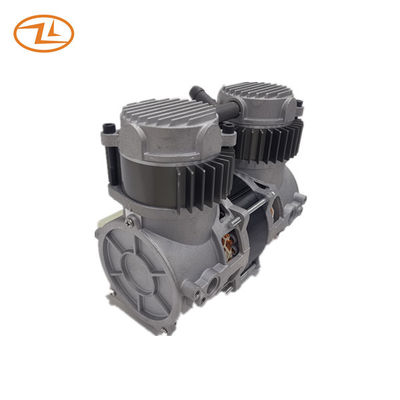

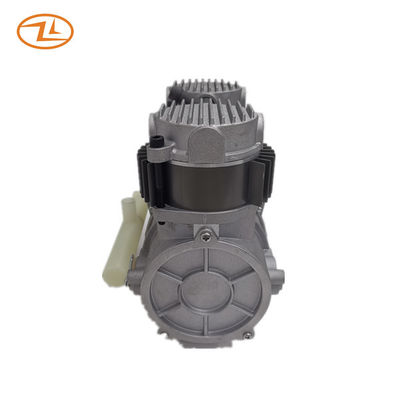

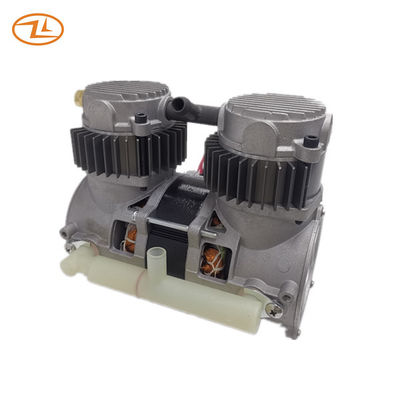

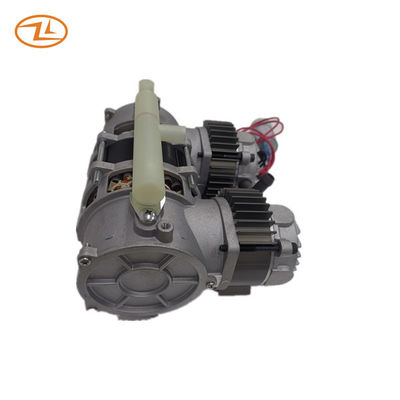

5L Oxygen Concentrator Oil-Free Air Compressor 110V 60HZ 300W 70L/M@140Kpa
An oil-free air compressor is characterized in an air inlet provided at a lateral open end of a crankcase of the air compressor. External air enters into the crankcase via the lateral air inlet and then enters into a cylinder above the crankcase via a check valve provided on a piston head in the cylinder. Air in the cylinder is compressed by the piston head and then discharged to an air storage tank via a single air outlet provided on a cylinder head of the cylinder.
Specification:
| Model | Rated voltage/frequency V/HZ | Rated Speed RPM | Rated input power W | Working air pressure Kpa | Rated flow rate L/M |
| ZL300(5L) | 220V 50HZ | 1400RPM | 300W | 140Kpa | >70L/M |
| ZL300(5L) | 220V 60HZ | 1680RPM | 300W | 140Kpa | >70L/M |
| ZL300(5L) | 110V 50HZ | 1400RPM | 300W | 140Kpa | >70L/M |
| ZL300(5L) | 110V 60HZ | 1680RPM | 300W | 140Kpa | >70L/M |
Drawing:
Application: Oxygen generator 5L
