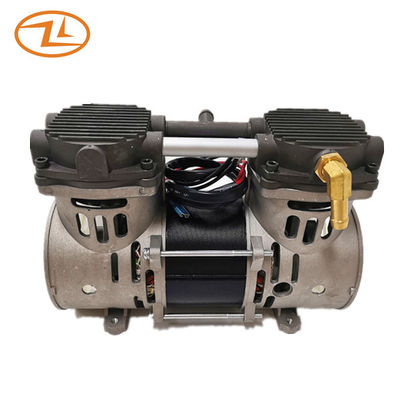

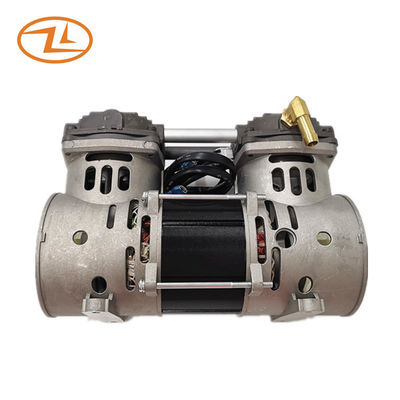

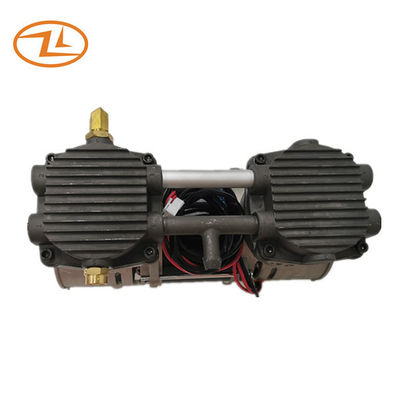

Long Life Oilless Air Compressor For 5 Liter Oxygen Concentrator 120V 60HZ 300W 60L/M
An oil-free air compressor is characterized in an air inlet provided at a lateral open end of a crankcase of the air compressor. External air enters into the crankcase via the lateral air inlet and then enters into a cylinder above the crankcase via a check valve provided on a piston head in the cylinder. Air in the cylinder is compressed by the piston head and then discharged to an air storage tank via a single air outlet provided on a cylinder head of the cylinder.
Specification:
| Model | ZL280A-60-185-06 | ZL280A-60-185-XX |
| Rated voltage/frequency V/HZ | 220V/ 50HZ | 120V/ 60HZ |
| Rated speed RPM | 1300RPM | 1650RPM |
| Rated input power W | 310W | 320W |
| Working pressure Kpa | 185kpa | 185kpa |
| Rated air flow L/M | >60L/M | >60L/M |
Application: Suitable for Vacuum, Laboratory, Medical and medical cosmetology, Vacuum packaging, Electronic equipment, Automation, Textile and so on. Often used for 5L Oxygen generator
Drawing:
