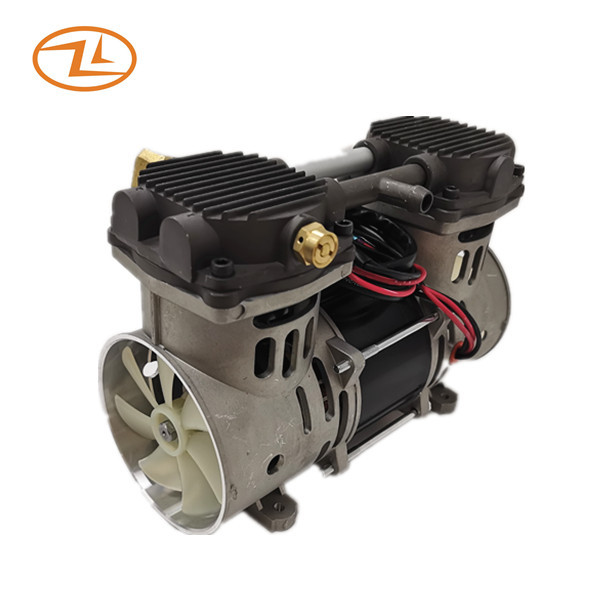

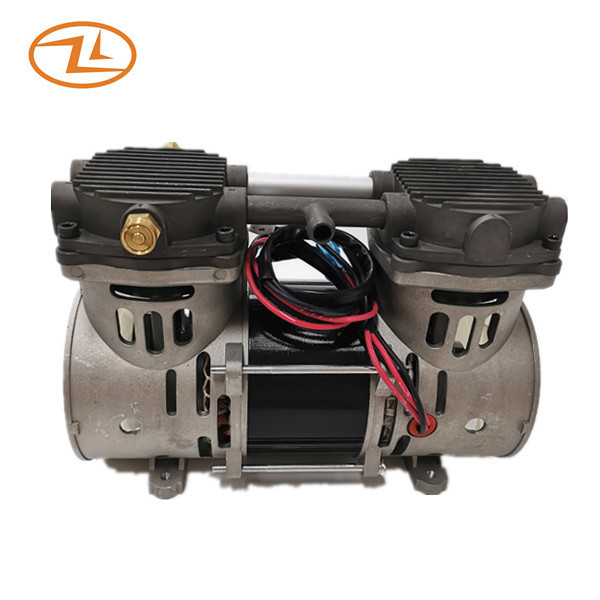

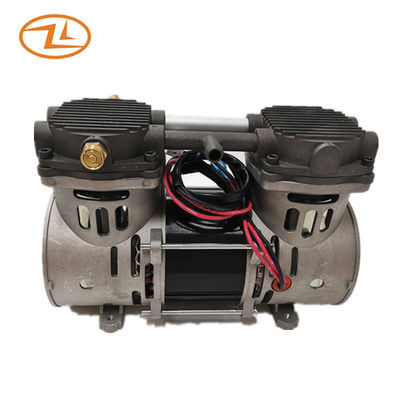

Oil Free Air Compressor Oxygen Concentrator Air Compressor 60L/M Medical Use
Application: Suitable for Vacuum, Laboratory, Medical and medical cosmetology, Vacuum packaging, Electronic equipment, Automation, Textile and so on.
- Often for Oxygen generator 5L
Oilless air compressor features:
Oil-less operation(clean air stream, less maintenance)
Permanently lubricated ball bearing(optimum life)
High performance piston seal (optimum life)
Die-cast aluminum components(strong, lightweight, durable)
Wetted parts treated for corrosion resistance
Dynamically balanced(low operation vibration)
Pressure relief valve included
Twin fans provide cooling air for the motor and cylinders
Low noise
Continous duty
Specification:
| Model | ZL280A-60-185-06 | ZL280A-60-185-XX |
| Rated voltage/frequency V/HZ | 220V/ 50HZ | 120V/ 60HZ |
| Rated speed RPM | 1300RPM | 1650RPM |
| Rated input power W | 310W | 320W |
| Working pressure Kpa | 185kpa | 185kpa |
| Rated air flow L/M | >60L/M | >60L/M |
| Thermal protection | Thermal protector 145℃ | |
| Noise | <6dbA | |
| Insulation resistance | The cold insulation resistance shall be more than 100MΩ(tested by DC 500V megger) | |
| Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. | |
Drawing:
