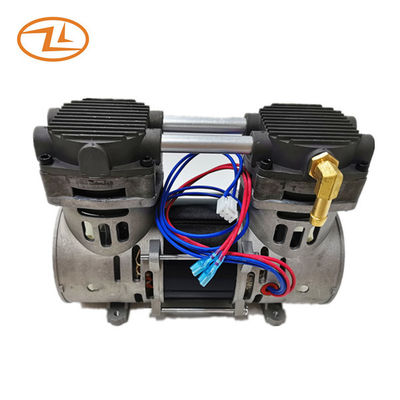

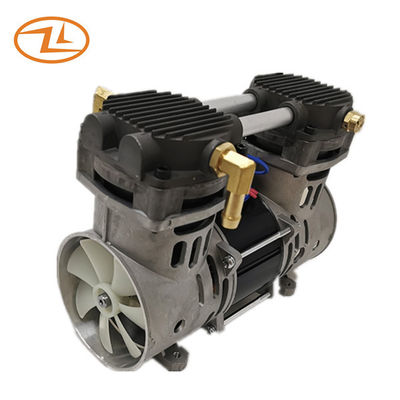

Oilless Air Compressor Portable Oxygen Concentrator Use High Pressure 70L/M
Oil free air compressor features:
Oil-less operation(clean air stream, less maintenance)
High performance piston seal (optimum life)
Permanently lubricated ball bearing(optimum life)
Thin wall, hard coated aluminum cylinder(maxium heat transfer)
Brass valves(optimum life, consistent performance, corrosion resistance)
Die-cast aluminum components(strong, lightweight, durable)
Thermally protected motor
Pressure relief valve included
Dynamically balanced(low operation vibration)
Twin fans provide cooling air for the motor and cylinders
Continous duty
Specification:
| Model | ZL280A-70-200-24 | ZL280A-70-200-XX |
| Rated voltage/frequency V/HZ | 220V/ 50HZ | 120V/ 60HZ |
| Rated speed RPM | 1300RPM | 1650RPM |
| Rated input power W | 370W | 380W |
| Working pressure Kpa | 200kpa | 200kpa |
| Rated air flow L/M | >70L/M | >70L/M |
| Thermal protection | Thermal protector 145℃ | |
| Insulation resistance | The cold insulation resistance shall be more than 100MΩ(tested by DC 500V megger) | |
| Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. |
|
Drawing:
Application: Often used for 5L or 7L Oxygen generator. It is also suitable for Vacuum, Laboratory, Medical cosmetology, Vacuum packaging, Electronic equipment, Automation, Textile and so on.
