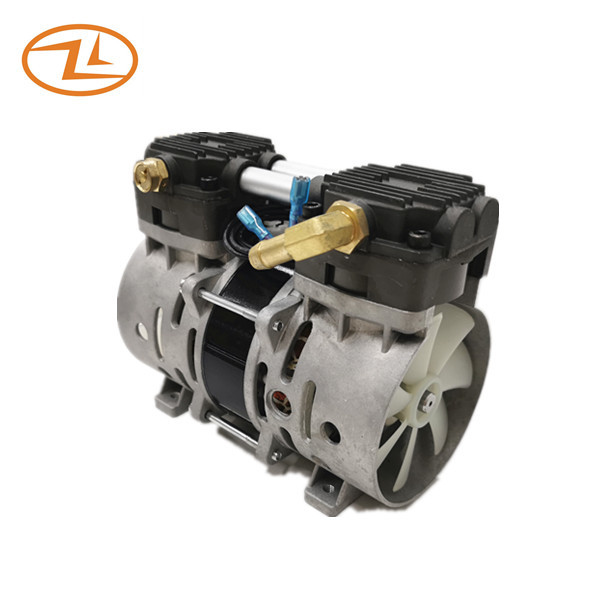

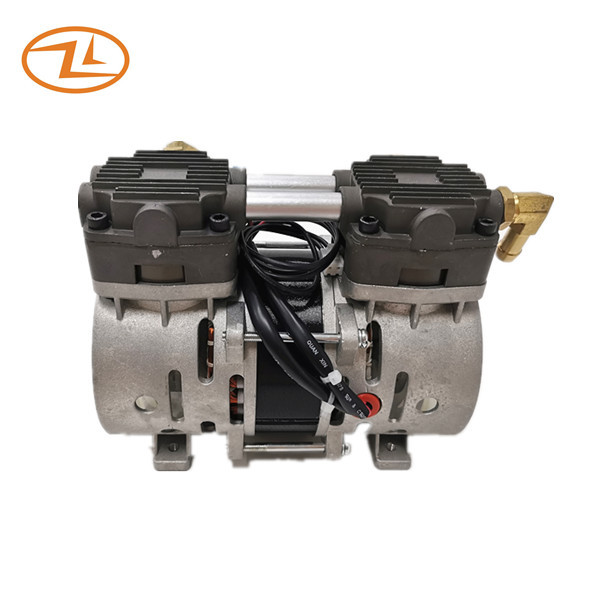

Silent Oilless Air Compressor 120V 60HZ Pump Medical 3L Oxygen Concentrator
Specification:
| Model | ZL190A-45-140-09 | ZL190A-45-140-XX |
| Rated voltage/frequency V/HZ | 220V/ 50HZ | 120V/ 60HZ |
| Rated speed RPM | 1350RPM | 1650RPM |
| Rated input power W | 210W | 230W |
| Working pressure Kpa | 140kpa | 140kpa |
| Rated air flow L/M | >=45L/M | >=45L/M |
Oil-free air compressor features:
Oil-less operation(clean air stream, less maintenance)
Permanently lubricated ball bearing(optimum life)
Brass valves(optimum life, consistent performance, corrosion resistance)
High performance piston seal (optimum life)
Die-cast aluminum components(strong, lightweight, durable)
Thin wall, hard coated aluminum cylinder(maxium heat transfer)
Wetted parts treated for corrosion resistance
Dynamically balanced(low operation vibration)
Thermally protected motor
Pressure relief valve included
Twin fans provide cooling air for the motor and cylinders
Low noise
Continous duty
Application: Suitable for Vacuum adsorption, Laboratory, Medical and medical cosmetology, Vacuum packaging, Electronic equipment, Automation, Textile and so on.
- Often for Oxygen generator 3L
Drawing:
