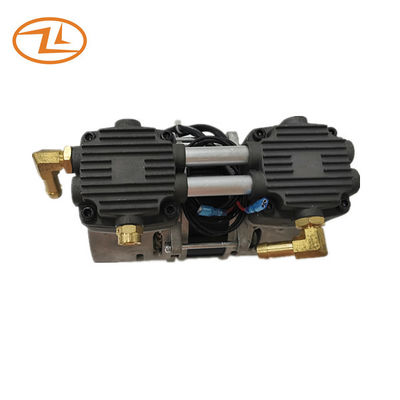

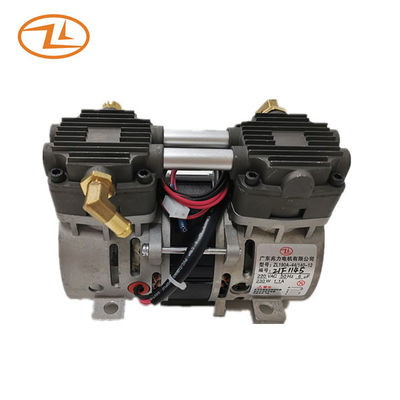

High Air Pressure Pump Oilless Air Compressor 220V 50HZ Oxygen Concentrator 3L Use
An oil-free air compressor is characterized in an air inlet provided at a lateral open end of a crankcase of the air compressor. External air enters into the crankcase via the lateral air inlet and then enters into a cylinder above the crankcase via a check valve provided on a piston head in the cylinder. Air in the cylinder is compressed by the piston head and then discharged to an air storage tank via a single air outlet provided on a cylinder head of the cylinder.
Specification:
| Model | ZL190A-44-140-12 | ZL190A-44-140-XX |
| Rated voltage/frequency V/HZ | 220V/ 50HZ | 120V/ 60HZ |
| Rated speed RPM | 1350RPM | 1650RPM |
| Rated input power W | 230W | 240W |
| Working pressure Kpa | 140kpa | 140kpa |
| Rated air flow L/M | >=44L/M | >=44L/M |
Application: Suitable for Vacuum adsorption, Laboratory, Medical and medical cosmetology, Vacuum packaging, Electronic equipment, Automation, Textile and so on.
- Often for Oxygen generator 3L
Oilless air compressor features:
Oil-less operation(clean air stream, less maintenance)
Permanently lubricated ball bearing(optimum life)
Brass valves(optimum life, consistent performance, corrosion resistance)
High performance piston seal (optimum life)
Die-cast aluminum components(strong, lightweight, durable)
Thin wall, hard coated aluminum cylinder(maxium heat transfer)
Wetted parts treated for corrosion resistance
Dynamically balanced(low operation vibration)
Thermally protected motor
Pressure relief valve included
Twin fans provide cooling air for the motor and cylinders
Low noise
Continous duty
Drawing:
