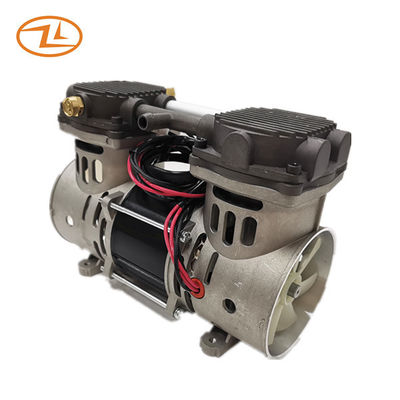

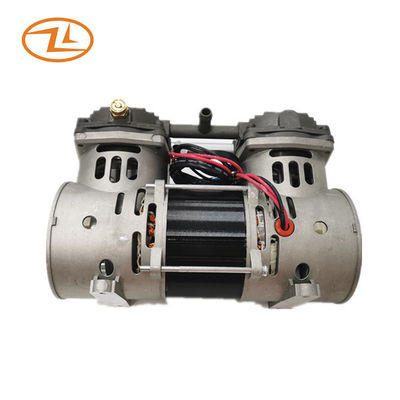

Medical Use Oilless Oxygen Air Compressor 220V 50HZ For 5 Liter Oxygen Concentrator
Specification:
| Model | ZL280A-60-185-06 | ZL280A-60-185-XX |
| Rated voltage/frequency V/HZ | 220V/ 50HZ | 120V/ 60HZ |
| Rated speed RPM | 1300RPM | 1650RPM |
| Rated input power W | 310W | 320W |
| Working pressure Kpa | 185kpa | 185kpa |
| Rated air flow L/M | >60L/M | >60L/M |
Insulation resistance: The cold insulation resistance shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strengt: It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Drawing:
Application: Suitable for Vacuum, Laboratory, Medical and medical cosmetology, Vacuum packaging, Electronic equipment, Automation, Textile and so on. Often used for 5L Oxygen generator
