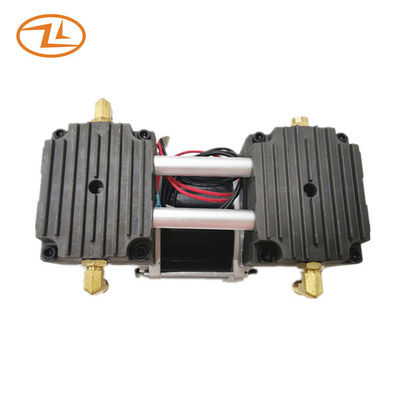

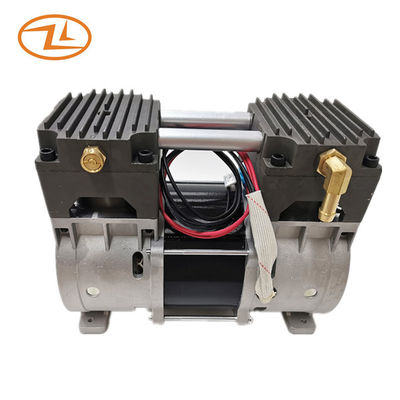

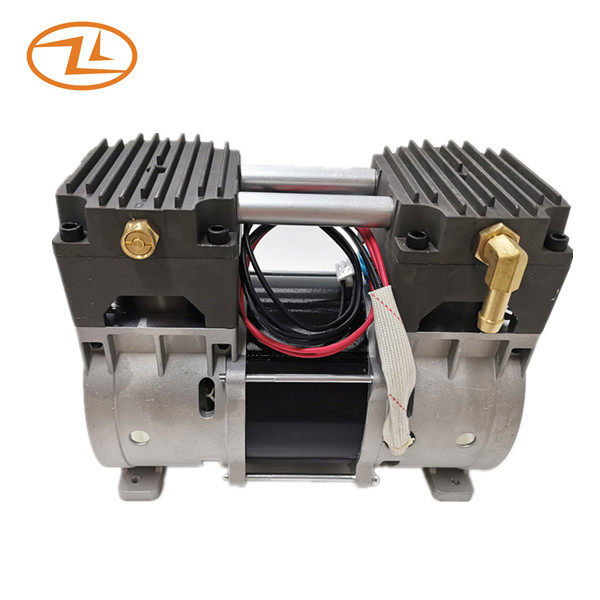

120L/M Medical Oxygen Concentrator Use Oilless Piston Air Compressor 650W
Specification:
| Model | ZL450A-120-200-03 |
| Rated voltage/frequency V/HZ | 220V/ 50HZ |
| Rated input power W | 670W |
| Starting voltage V | 200V max |
| Working air pressure PSI | 200kpa |
| Rated flow rate L/H | 120L/M |
| Insulation Class | CL.B |
| Protection | Thermal protector 145℃ |
| Piston bearing | Ball bearing |
| Nozzle direction | Flexible |
Application: Mainly used for 10L Oxygen generator.
This kind of piston air compressor has many advantages as follows:
Oil free air compressor features:
Oil-less operation(clean air stream, less maintenance)
High performance piston seal (optimum life)
Permanently lubricated ball bearing(optimum life)
Thin wall, hard coated aluminum cylinder(maxium heat transfer)
Brass valves(optimum life, consistent performance, corrosion resistance)
Die-cast aluminum components(strong, lightweight, durable)
Wetted parts treated for corrosion resistance
Pressure relief valve included
Thermally protected motor
Dynamically balanced(low operation vibration)
Twin fans provide cooling air for the motor and cylinders
Low noise
Continous duty
Drawing:
