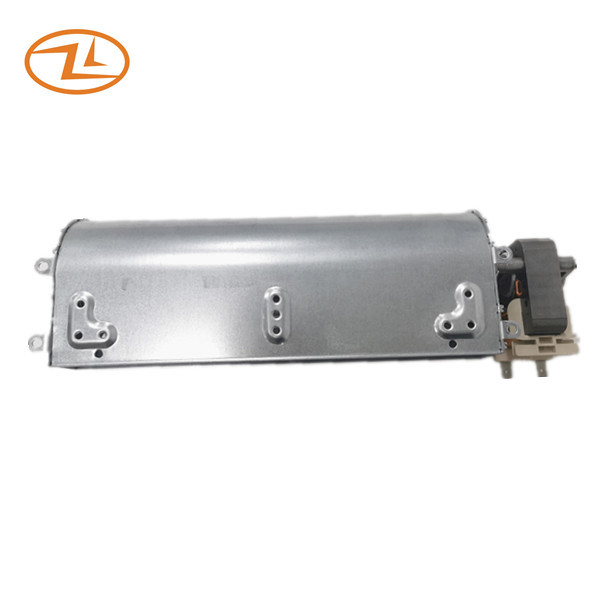

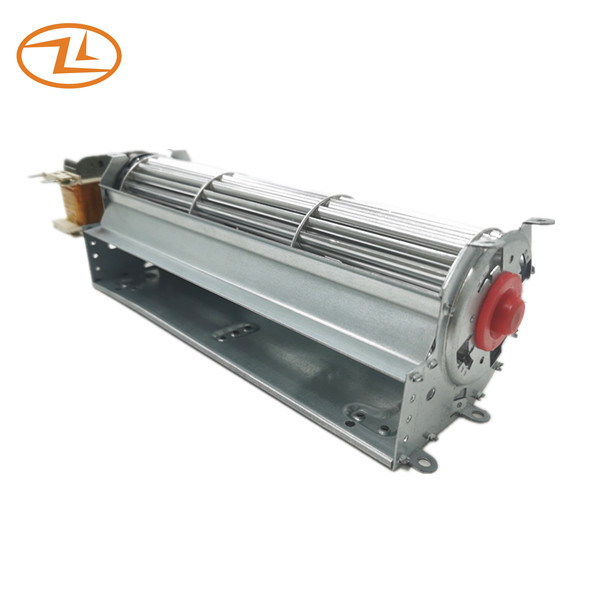

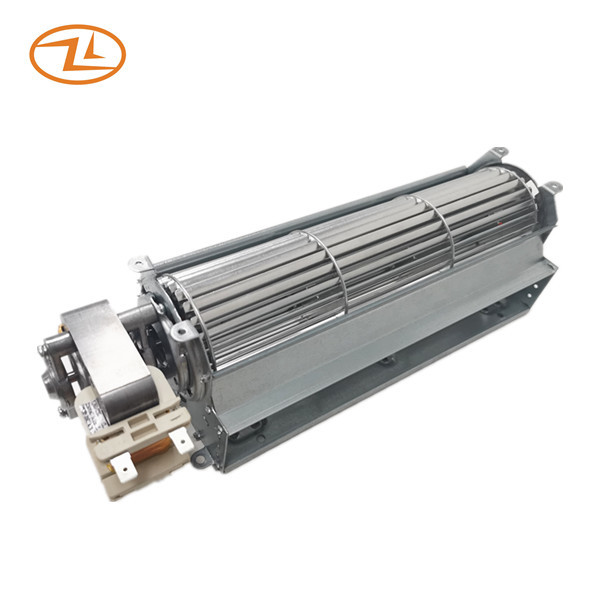

Tangential Blower Cross Flow Fan 60-240mm For Air Curtain Air Conditioner
Specification:
| Motor Type | AC shaded pole motor YJ61-20 |
| Blower size | 60X240mm |
| Rated voltage/frequency | 230V 50HZ |
| Starting voltage | <= 176V |
| Rated current | <= 0.2A |
| Rated power | 27+/20% W |
| Rated speed | 2000+/- 10% RPM |
| Rising Temp. | IEC60335-1 |
| Lock Temp. | IEC60335-1 |
| High-voltage test | 1800VAC/2mA/1S |
| Cold insulation resistance | >= 100MΩ |
| End play | 1.0mm max |
The cross flow fan/tangential fan is generally made up of drive motors, blowers, shells, operating support connectors, etc. The freely designed mouse cage blower cylinder processed by blades, rotor and the shell form the air flue. The special structure can make the air pass the rotor twice in the centrifugal direction.
The product has the following features:
Low back pressure
Large flow
Low noise
Resist high temperature
Product design concept suitable for complete complanation.
Drawing:
Application: Air curtain, Air conditioning, Freezers, Electric Fireplaces, Oven
