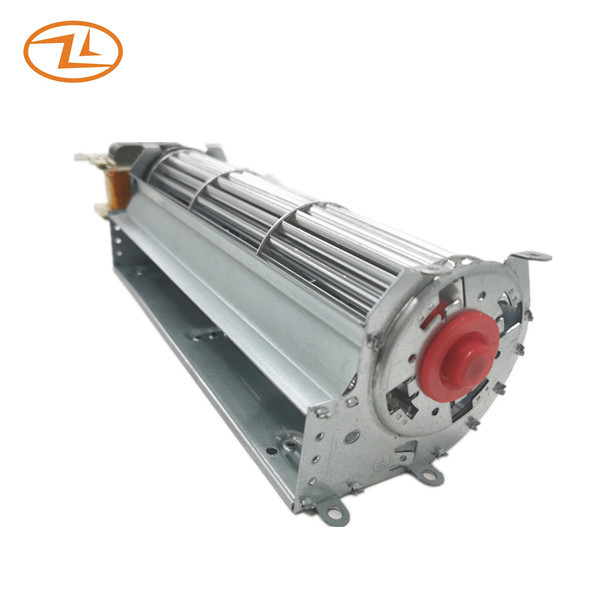

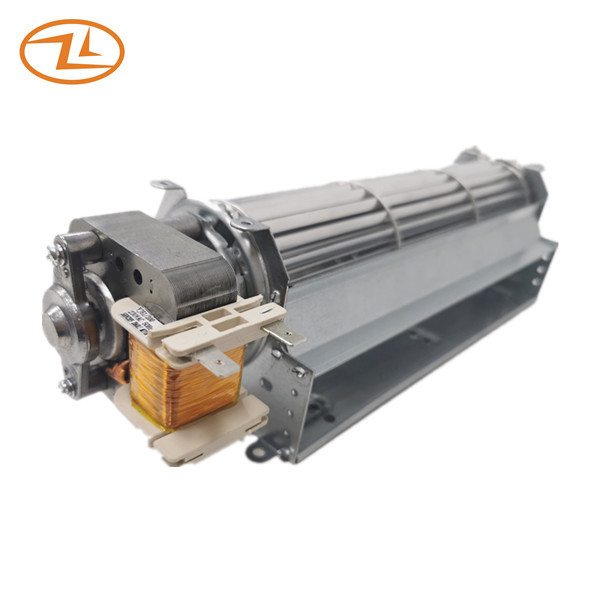

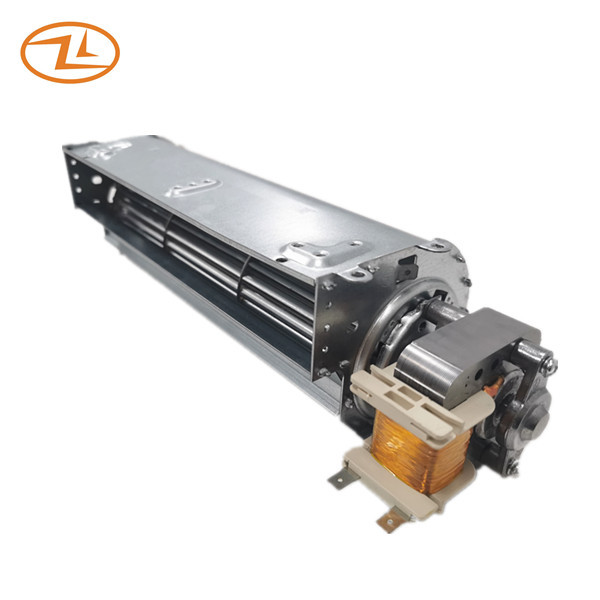

60-240mm Cross Flow Fan Tangential Fan With Ac Shaded Pole Motor CL. H/B/E
Specification:
| Motor Type | AC shaded pole motor YJ61-20 |
| Blower size | 60X240mm |
| Rated voltage/frequency | 230V 50HZ |
| Starting voltage | <= 176V |
| Rated current | <= 0.2A |
| Rated power | 27+/20% W |
| Rated speed | 2000+/- 10% RPM |
| Rising Temp. | IEC60335-1 |
| Lock Temp. | IEC60335-1 |
| High-voltage test | 1800VAC/2mA/1S |
| Cold insulation resistance | >= 100MΩ |
| End play | 1.0mm max |
Features:
1. The aluminium made alloy cross flow fan is temperature resistant and has qualities of light in weight, low noise, minimum vibration, high strength and long life.
2. The angle and length of cross flow fan leaves are easily adjustable to adapt to any customers' requirements.
3. The motor bearing is protected by a layer of grease which would allow 15000 hours of usage.
Drawing:
Application: This kind of cross flow fan is widely used in different industries, like hotels, construction works, home use appliances and so on. For example, Air curtain, Air conditioning, Freezers, Electric Fireplaces, Oven, Heater fan.
