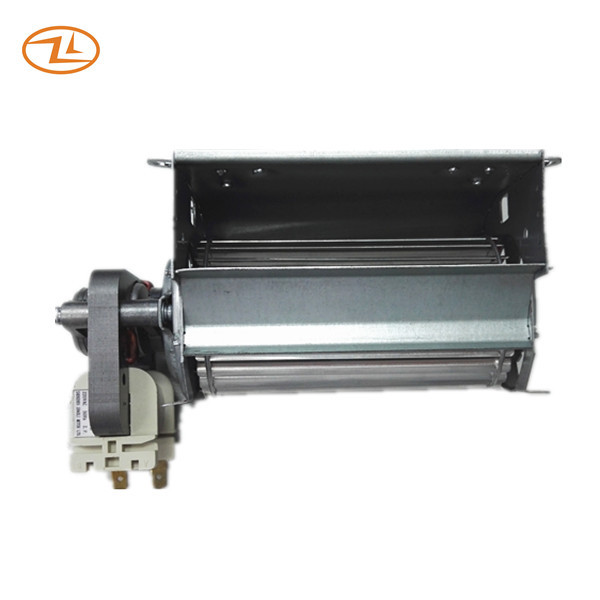

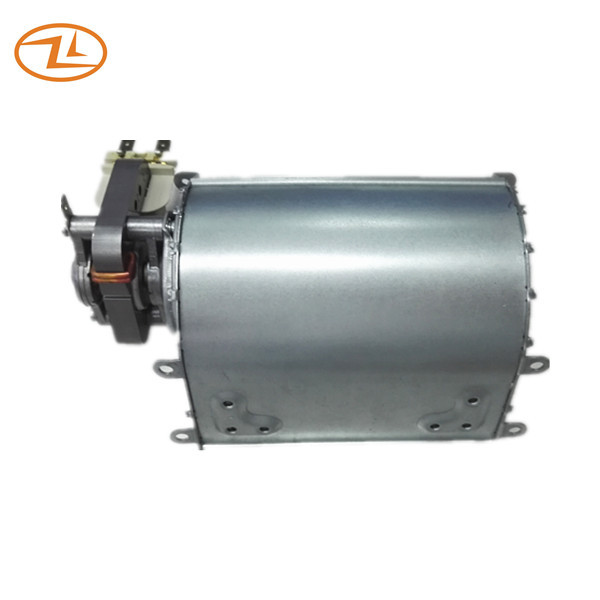

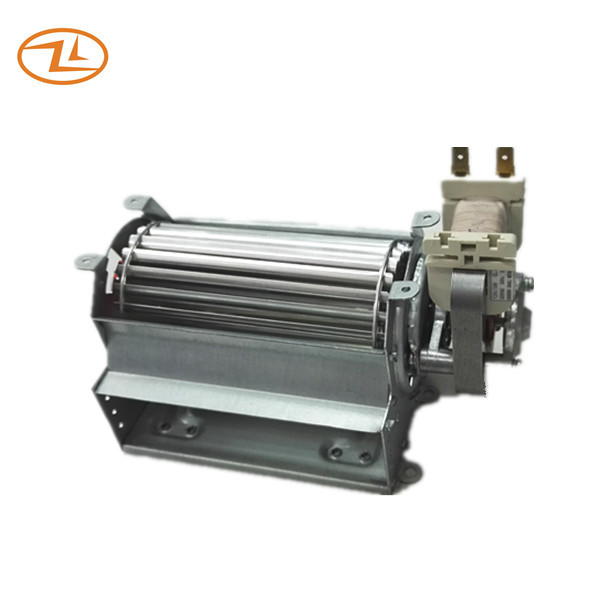

Cross Flow Fan For Built-In Electric Wall Oven Use European Convection 220-240V 50HZ
Specification:
| Motor Type | AC shaded pole motor YJ61-10 |
| Blower size | 60X120mm |
| Rated voltage/frequency | 220V 50HZ |
| Starting voltage | <= 176V |
| Rated current | <= 0.1A |
| Rated power | 12+/20% W |
| Rated speed | 1100+/- 15% RPM |
| Rising Temp. | IEC60335-1 |
| Lock Temp. | IEC60335-1 |
| High-voltage test | 1800VAC/2mA/1S |
| Cold insulation resistance | >= 100MΩ |
| End play | 1.0mm max |
This kind of cross flow fan is widely used in different industries, like hotels, construction works, home use appliances and so on. For example, Built-in electric wall oven, Air curtain, Air conditioning, Freezers, Electric Fireplaces, Oven, Heater fan.
It is flexible to change the blower diameter and length, bearing and fitting holes.
Drawing:
Application: Built-in electric wall oven
