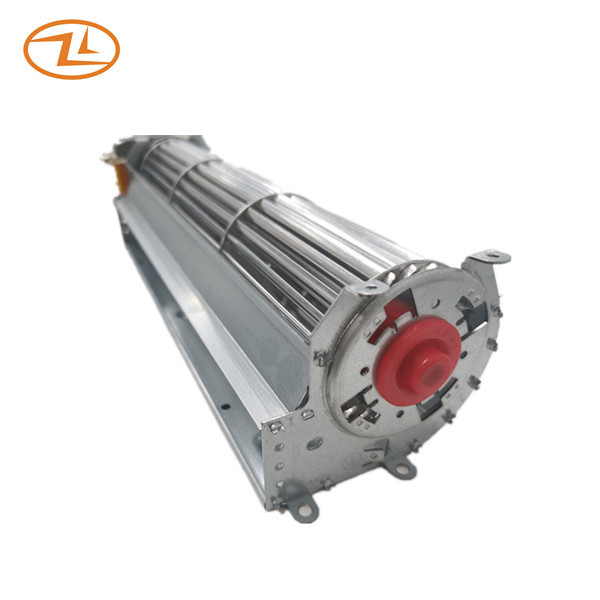

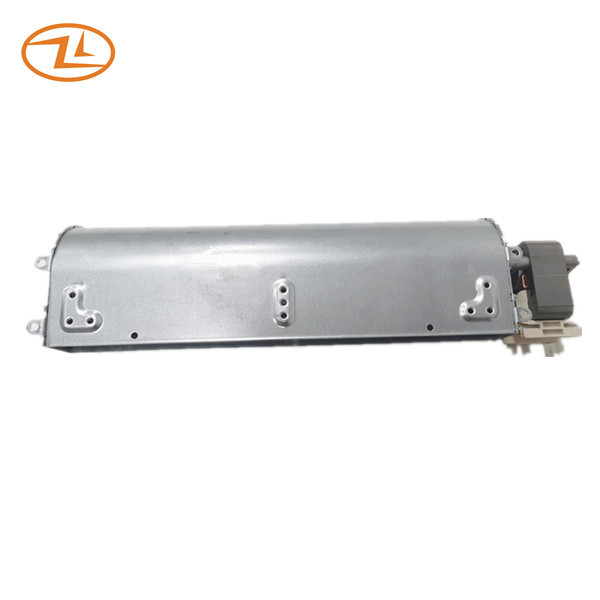

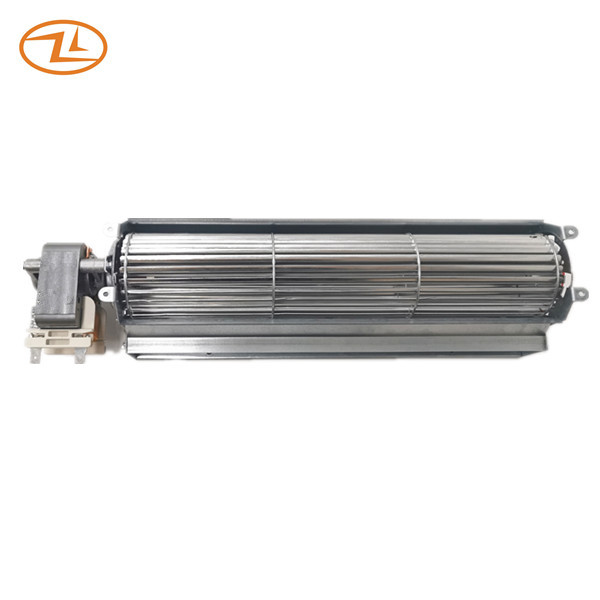

Tangential Fan 60-300 With Ac Shaded Pole Motor Ball Bearing Or Sleeve Bearing
Specification:
| Motor Type | AC shaded pole motor YJ61/300 |
| Blower size | φ60X300mm |
| Rated voltage/frequency | 110-127V 60HZ |
| Starting voltage | <= 97V |
| Rated current | <= 0.55A |
| Rated power | 42+/20% W |
| Rated speed | 2200+/- 10% RPM |
| Rising Temp. | IEC60335-1 |
| Lock Temp. | IEC60335-1 |
| High-voltage test | 1800VAC/2mA/1S |
| Cold insulation resistance | >= 100MΩ |
| End play | 1.0mm max |
The cross-flow air blower/tangential fan is generally made up of drive motors, blowers, shells, operating support connectors, etc. The freely designed mouse cage blower cylinder processed by blades, rotor and the shell form the air flue. This kind of cross flow fan is widely used in different industries, like hotels, construction works, home use appliances and so on. For example, Air curtain, Air conditioning, Freezers, Electric Fireplaces, Oven, Heater fan.
Drawing:
Application:
