Tangential Fan For Electric Built-In Wall Oven Use 60-120mm Blower Size CL.H

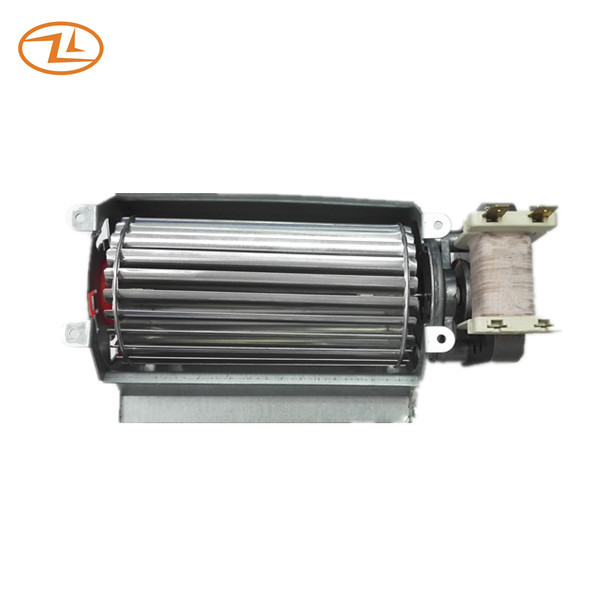

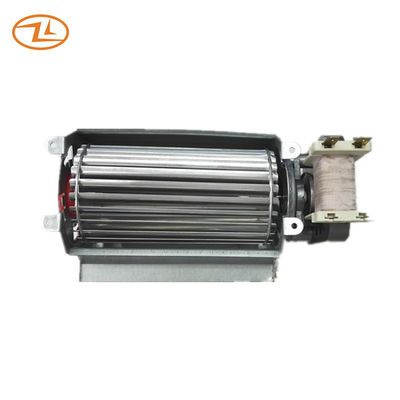

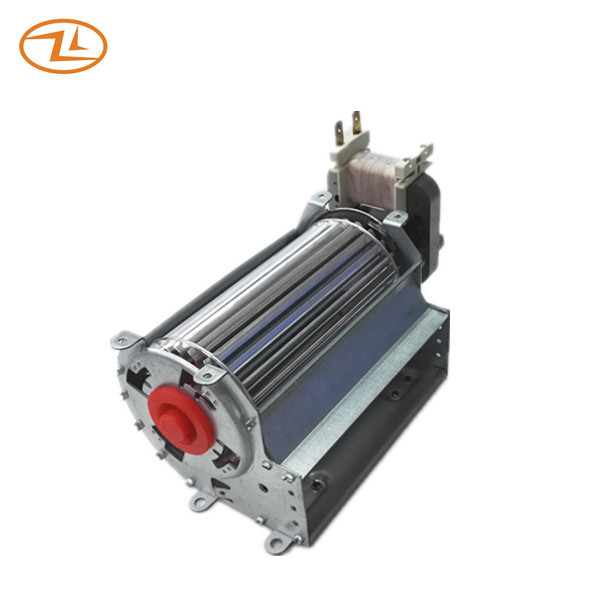

This 60X120mm cross flow fan/tangential is mainly applied in built-in electric oven to cool down the oven after use. Upon customers' need, It is flexible to change the blower diameter and length, bearing and fitting holes and performance.
Specification:
| Motor Type | AC shaded pole motor YJ61-10 |
| Blower size | 60X120mm |
| Rated voltage/frequency | 220-240V 50/60HZ |
| Starting voltage | <= 176V |
| Rated current | <= 0.1A |
| Rated power | 12+/20% W |
| Rated speed | 1100+/- 15% RPM |
| Rising Temp. | IEC60335-1 |
| Lock Temp. | IEC60335-1 |
| High-voltage test | 1800VAC/2mA/1S |
| Cold insulation resistance | >= 100MΩ |
| End play |
1.0mm max |
Drawing:
Application: Built-in electric wall oven
