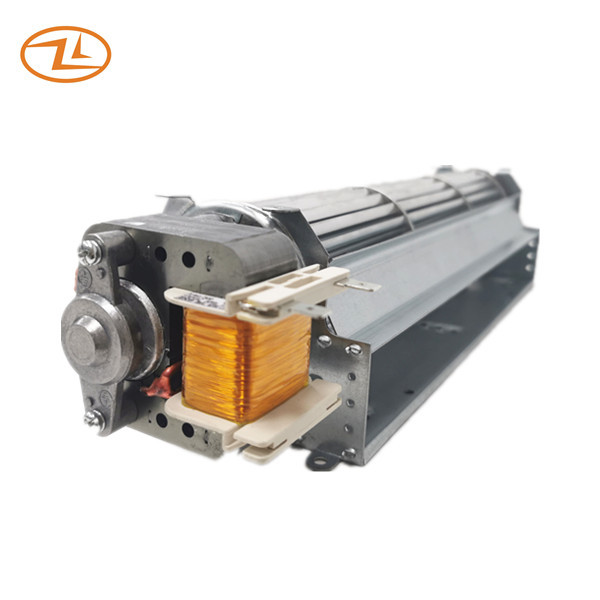

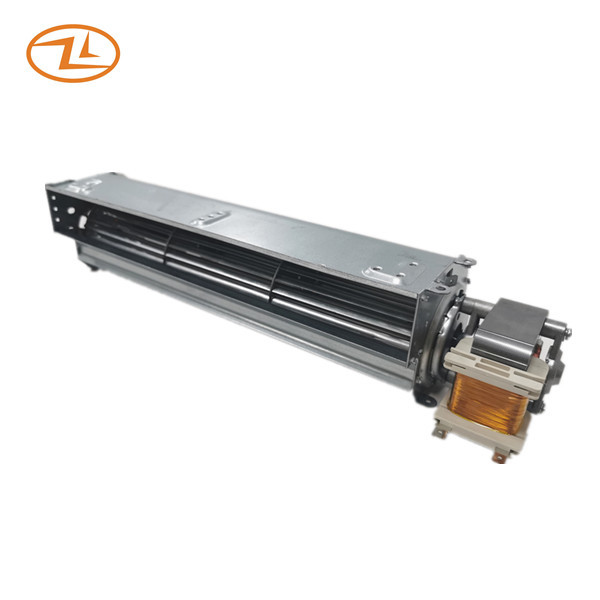

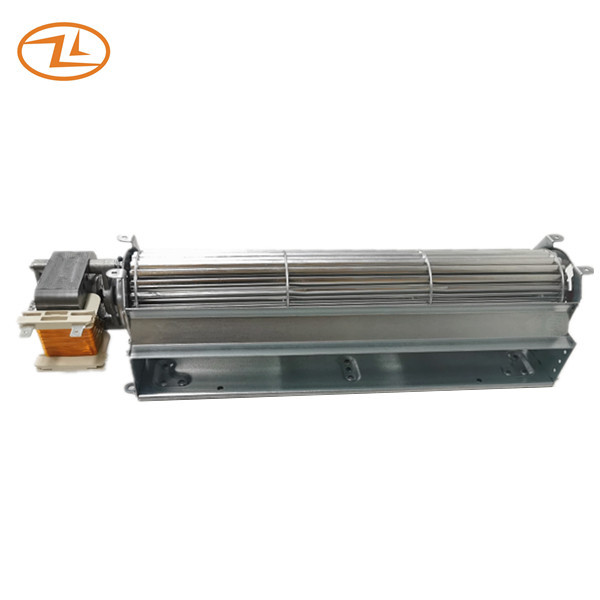

Tangential Fan 60/65mm Blower Diameter 60-300mm With Ac Shaded Pole Motor
The cross-flow air blower/tangential fan is generally made up of drive motors, blowers, shells, operating support connectors, etc. The freely designed mouse cage blower cylinder processed by blades, rotor and the shell form the air flue.
The special structure can make the air pass the rotor twice in the centrifugal direction.
Features:
1. The aluminium made alloy cross flow fan is temperature resistant and has qualities of light in weight, low noise, minimum vibration, high strength and long life.
2. The angle and length of cross flow fan leaves are easily adjustable to adapt to any customers' requirements.
3. The motor bearing is protected by a layer of grease which would allow 15000 hours of usage.
Specification:
| Motor Type | AC shaded pole motor YJ61-25 |
| Blower size | 60X300mm |
| Rated voltage/frequency | 230V 50HZ |
| Starting voltage | <= 176V |
| Rated current | <= 0.5A |
| Rated power | 40+/20% W |
| Rated speed | 2100+/- 10% RPM |
| Rising Temp. | IEC60335-1 |
| Lock Temp. | IEC60335-1 |
| High-voltage test | 1800VAC/2mA/1S |
| Cold insulation resistance | >= 100MΩ |
| End play | 1.0mm max |
Drawing:
Application: This kind of cross flow fan is widely used in different industries, like hotels, construction works, home use appliances and so on. For example, Air curtain, Air conditioning, Freezers, Electric Fireplaces, Oven, Heater fan.
