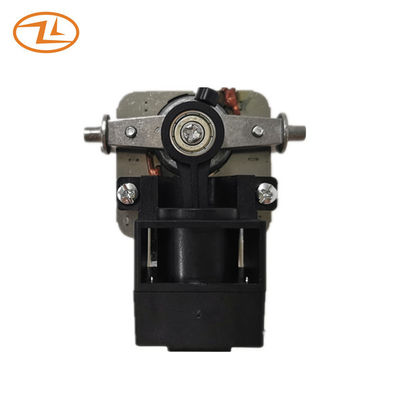

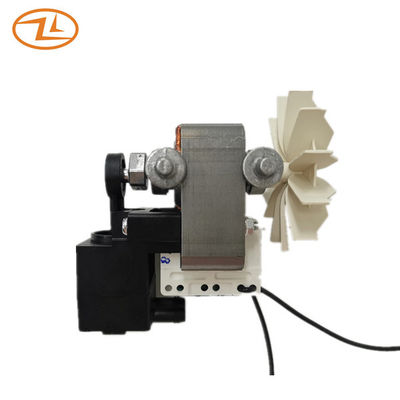

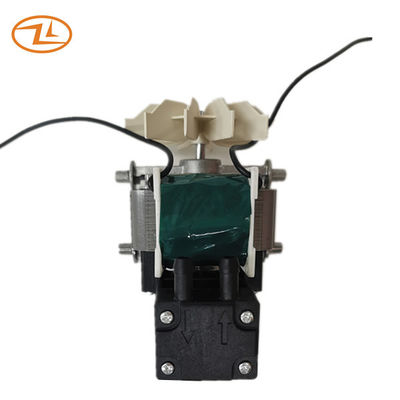

Piston Compressor Nebulizer Motor Inhaler Use YJ62-25 230V 50HZ CL.H Ball Bearing
This kind of pump is piston compressor pump. Mainly it is used for compressor nebulizer, automizer, suction pump.
Piston: ball bearing
Pump nozzle direction: flexible, it can be four directions.
Specification:
| Rated voltage/frequency V/HZ | 230V 50HZ |
| Rated current A | 0.56A max |
| Rated input power W | 72W max |
| Starting voltage V | 200V max |
| Working air pressure PSI | 8PSI min |
| Rated flow rate L/H | 300L/H min |
| Max pressure PSI | 32PSI min |
| Insulation resistance | The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger) |
| Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. |
Drawing:
Application: Air compressor nebulizer, Piston compressor nebulizer, Inhaler.
