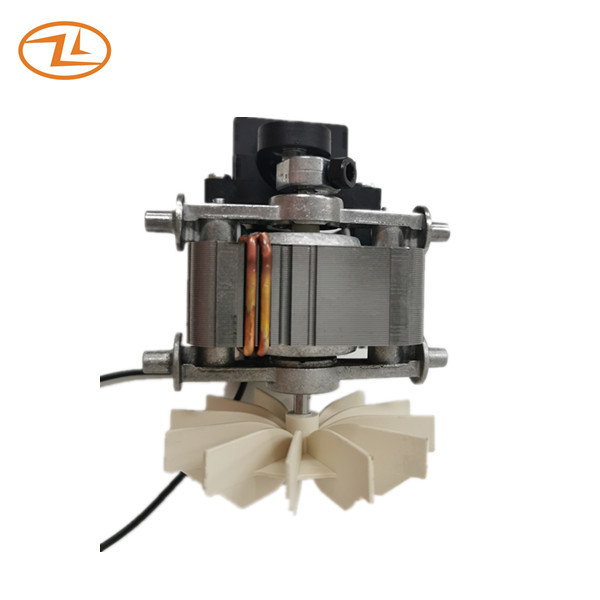

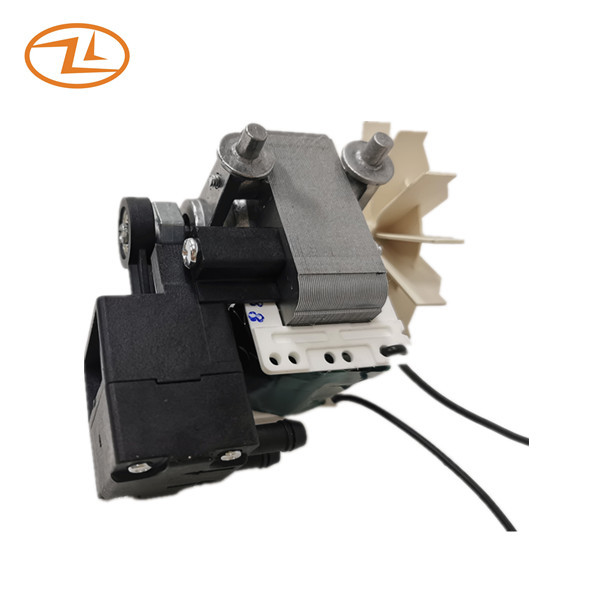

127/220V 60HZ Air Compressor Nebulizer Motor Inhaler Pump YJ62/300 CL.H
Specification:
| Rated voltage/frequency V/HZ | 127/220V 60HZ | |
| At 127V 60HZ | At 220V 60HZ | |
| Rated current A | 1.30A max | 0.55A max |
| Rated input power W | 72W max | 68W max |
| Starting voltage V | 114V max | 205V max |
| Working air pressure PSI | 8PSI min | 8PSI min |
| Rated flow rate L/H | 300L/H min | 300L/H min |
| Max pressure PSI | 32PSI min | 32PSI min |
| Protection | Thermal protector 140℃ | |
| Nozzle direction | Flexible, it can be four directions | |
| Piston bearing | Ball bearing | |
| Life | At rated load, 20 mins on, 40 mins off as one cycle. 1000 hours min. | |
This pump motor is customized for brazilian market with dual voltage. The typical application is compressor nebulizer.
Drawing:
Application: Inhaler, Piston compressor nebulizer, Air compressor nebulizer
