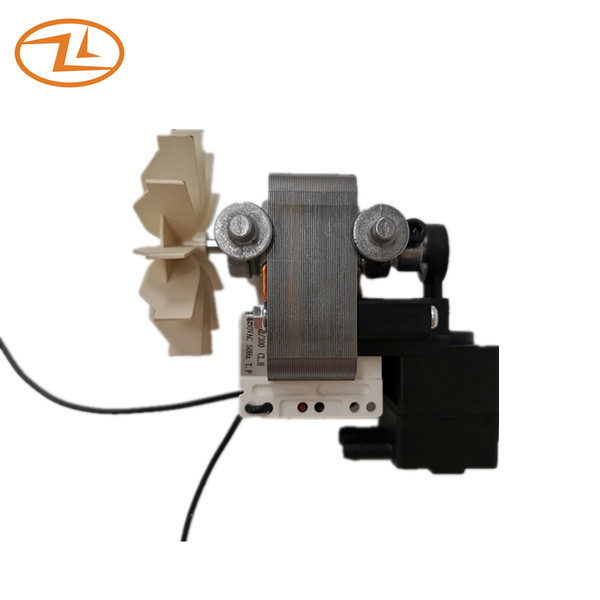

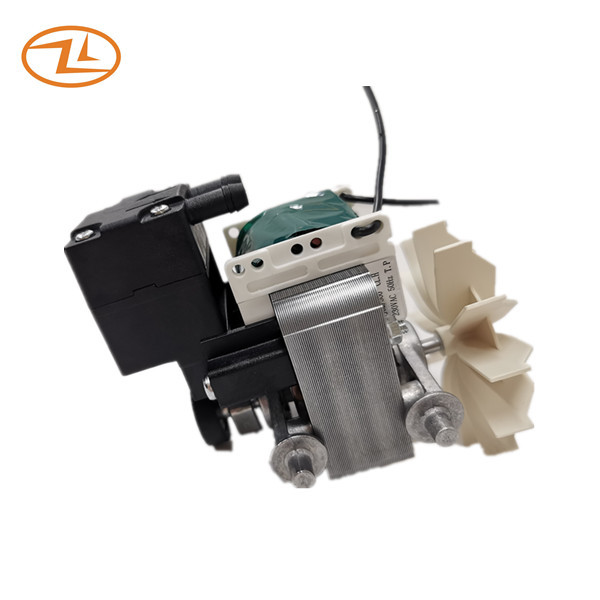

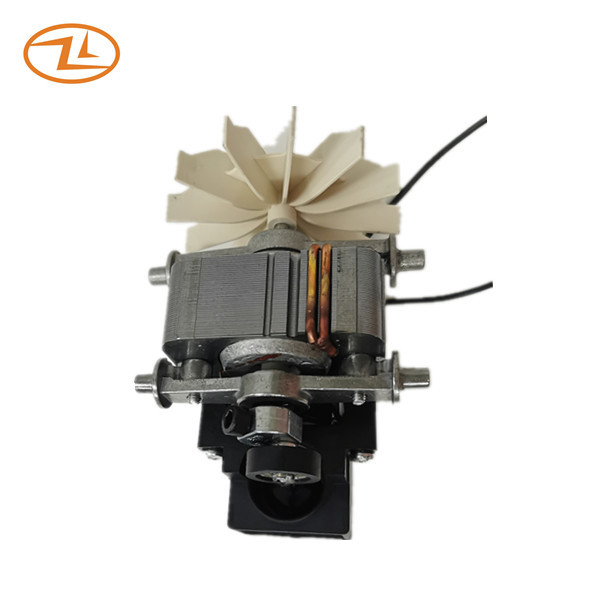

Nebulizer Compressor Motor Air Compressor Nebulizer Pump YJ62/300 230V 50HZ
Specification:
| Rated voltage/frequency V/HZ | 230V 50HZ |
| Rated current A | 0.56A max |
| Rated input power W | 72W max |
| Starting voltage V | 200V max |
| Working air pressure PSI | 8PSI min |
| Rated flow rate L/H | 300L/H min |
| Max pressure PSI | 32PSI min |
| Protection | Thermal protector 140℃ |
| Piston bearing | Ball bearing |
| Insulation resistance | The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger) |
| Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. |
| Life | At rated load, 20 mins on, 40 mins off as one cycle. 1000 hours min. |
Drawing:
Application: Piston compressor nebulizer, Air compressor nebulizer, Inhaler.
