25mm Air Compressor Suction Machine Motor 220V 58W Flow Rate

25mm Air Compressor Suction Machine Motor 220V 58W Flow Rate
Features Gallery Product Description Request A Quote
Name: Compressor Nebulizer Motor
Rated Voltage: 220V 50HZ
Stack Size: 62.5x62.5mm
Lamination: 25.5mm
Phase: Single Phase
Number Of Poles: Two
Insulation Class: CL.B
Bearing: Ball Bearing Or Sleeve Bearings Optional
Pump Nozzle: Direction Is Flexible
Rated Load: Atomizing Chamber
Time Rating: S1 (continuous)
Packing: Customized Packing
Printing: Customized Printing
Application: Compressor Nebulizer/ Suction Machine
High Light:

25mm Suction Machine Motor


220V Suction Machine Motor


58W Air Compressor Motor

Basic Infomation
Place of Origin: China
Brand Name: Zhaoli
Certification: UL, CUL, CE, VDE, CCC, ROHS, REACH
Model Number: YJ62/300
Payment & Shipping Terms
Packaging Details: cartons + wooden pallet
Delivery Time: 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300,000pcs per day
Product Description

25mm Air Compressor Nebulizer Motor 220V 50HZ Big Pressure And Flow Rate

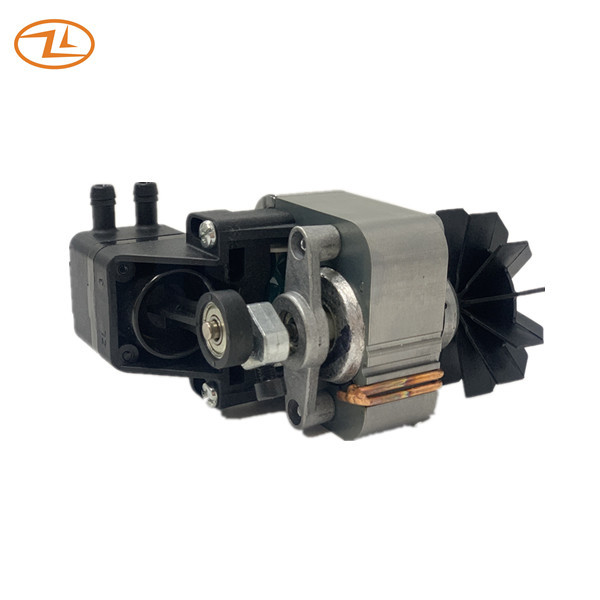

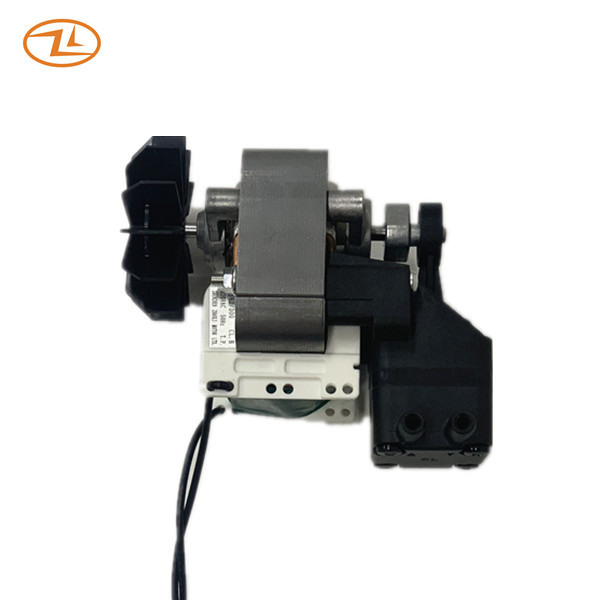

This kind of pump motor is composed by shaded pole motor with piston pump. Most of the parts are produced by our own factory- stack stamping, die-casting, motor shaft, plastic part injection. In this case, we can shorten the lead time and gurantee the parts' quality.



Rated voltage/frequency V/HZ 220V 50HZ
Rated current A 0.55A max
Rated input power W 58W max
Starting voltage V 198V max
Rated speed RPM 2500RPM min
Working air pressure PSI 12PSI min
Working flow rate L/M 5L/M min
Max pressure PSI 30PSI min
Max flow rate L/M 14 L/M min



25mm Air Compressor Suction Machine Motor 220V 58W Flow Rate 0



Application: Compressor Nebulizer, Suction machine
